Reverse Circulation Hammers & Bits
Selecting the Right Hammer
Black Diamond's reverse circulation hammers are specifically designed for all kinds of exploration drilling (deep hole and in-pit grade control applications). Whether you are exploring potential sites or working an existing mine, the BDDRILL RC hammer will guarantee high performance, exceptional reliability and dependable support.
Reverse Circulation Hammer Specifications
| Hammer | BD351 | RC3.5 | BD004 | BD542 | BD543 | BD545 | BD040 | BD52 | BD54 | A67 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top sub thread | R3" | R3" | R3.5" | R4" | M4" | R3.5" | R4" | M4" | R4" | M4" | M4.5" | R4.5" | M4" | R4" | M4.5" | R4.5" | M4.5" | R4.5" | M4.5" | R4.5" | M4.5" |
| Package case size, mm | (L)1100 (W)110 (H)120 | (L)1230 (W)120 (H)150 | (L)1300 (W)150 (H)180 | (L)1230 (W)140 (H)170 | (L)1260 (W)150 (H)180 | (L)1300 (W)150 (H)180 | (L)1300 (W)160 (H)190 | (L)1300 (W)160 (H)190 | (L)1330 (W)160 (H)190 |
||||||||||||
| Recommended bit size, mm | 86-100 | 100-110 | 111-125 | 113-133 | 123-140 | 127-140 | 133-143 | 136-146 | 136-146 | ||||||||||||
| Bit shank | RE351 | RC3.5 | RE004 | RE542 | RE543 | RE545 | RE040 | PR52 | PR54 | BD67 | |||||||||||
| External diameter, mm | 81 | 94 | 107 | 109.5 | 116 | 117.5 | 121 | 120.5 | 130 | 132 | |||||||||||
| Length excl. thread, mm (Less bit) | 1069 | 1184 | 1252 | 1191 | 1261 | 1210 | 1227 | 1294 | 1200 | ||||||||||||
| Hammer weight, kg (Less bit) | 29 | 44 | 52 | 57 | 63 | 65 | 53.8 | 47.5 | 69.4 | 69.4 | 68.5 | 84.5 | 81.8 | ||||||||
| Piston weight, kg | 4.8 | 8.3 | 10.5 | 11.6 | 11.6 | 13.5 | 13.6 | 14.3 | 17 | 17 | |||||||||||
| Wrench flat, mm | No Wrench Flat | (L)82 (W)40 | (L)90 (W)45 | (L)90 (W)45 | (L)90 (W)45 | (L)95 (W)45 | (L)95 (W)45 | (L)95 (W)50 | (L)95 (W)45 | (L)95 (W)50 | (L)102 (W)50 | (L)102 (W)50 | (L)94 (W)50 | (L)94 (W)50 | (L)94 (W)50 | (L)94 (W)50 | (L)94 (W)50 | (L)94 (W)50 | (L)100 (W)50 | (L)100 (W)50 | (L)95 (W)51 |
| Drilling conditions and project specifications may require larger air packages to be used | |||||||||||||||||||||
Reverse Circulation Service Guide
When breaking a Hammer down, avoid placing breakout tools in the mid section of the cylinder (barrel). Recommended breakout points are 130mm from each end of the cylinder. Wrap around chain type breakouts are recommended (see diagram). When holding bits for breakout, use a secure plate or pot to grab the bit head, but never on the gauge row buttons.
This information is included with every Hammer purchase.
Product Codes
Product codes are a valuable tool to describe and identify the product. In the code structure we have tried to describe the product features with an alphanumeric system and not always 100% logical, but with the attached key you will be able to find the product you are looking for or alternative products.
Air Consumption/Operation Pressure
Black Diamond Drilling RC Reverse Circulation Hammer Air Consumption and Operating Pressure Guide
Reverse Circulation Hammers
BD531 RC Reverse Circulation Hammer
RC3.5 RC Reverse Circulation Hammer
BD004 RC Reverse Circulation Hammer
BD542 RC Reverse Circulation Hammer
BD543 RC Reverse Circulation Hammer
BD545 RC Reverse Circulation Hammer
BD547 RC Reverse Circulation Hammer
BD040 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE040, PR40, RE052, MR120, AD660
Tap here for more detailed information

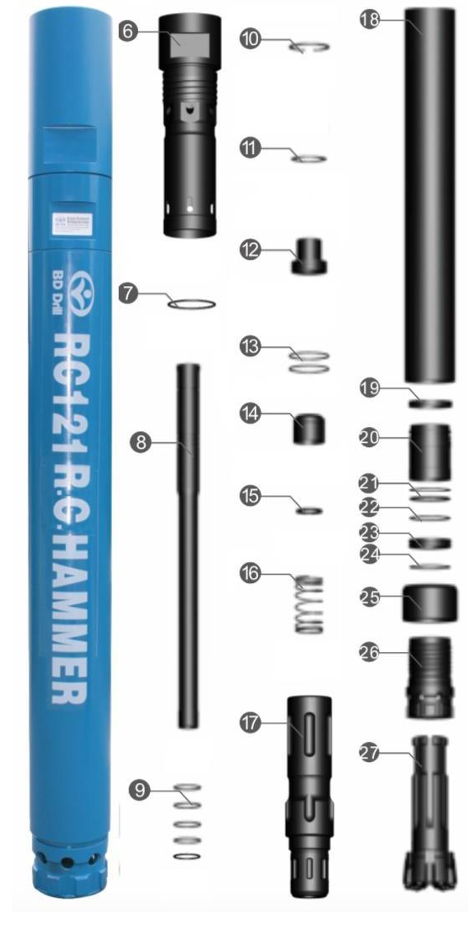

RC121-BD040 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE545, RE040, PR40, AD650, RC45, MR120
Tap here for more detailed information
BD52 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE040, PR40, RE052, MR120, AD660
Tap here for more detailed information

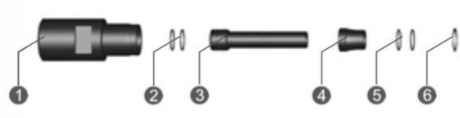

BD54 RC Reverse Circulation Hammer
Reverse Circulation Hammers
BD531 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE531, AD610
Click Here for more Detailed Information

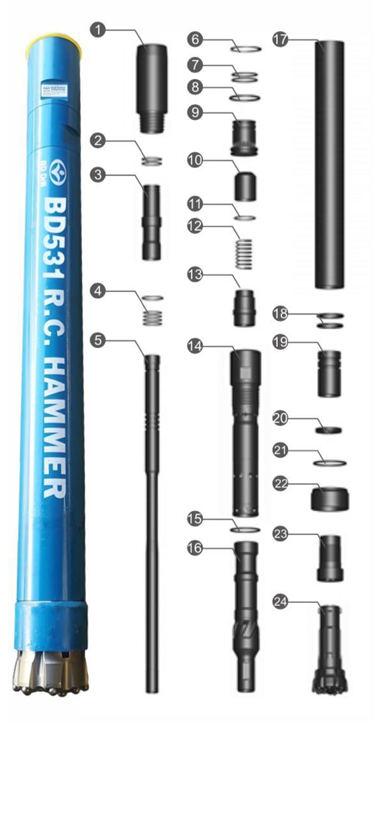

| 3" R.C . Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | 1 | Top Sub Remet 3" | 3.76 | BD531-TSUB-R3 | 33-531-R30 |
| 2 | O Ring (Adaptor Tube Remet 3") x2 | 0.01 | BD531-SK-TSUB-R3 | 38-531-000 | |
| 3 | Adaptor Tube Remet 3" | 1.85 | BD531-ASCREENR3 | 20-531-R30 | |
| 4 | O Ring (Sample Tube) x4 | 0.01 | BD531-SK-STUBE | 38-531-000 | |
| 5 | Sample Tube | 1.97 | BD531-STUBE | 37-531-000 | |
| 6 | Circlip | 0.04 | BD531-CIRCLIP | 41-D1300-0680 | |
| 7 | O Ring (Distributor 1) x2 | 0.01 | BD531-SK-DIST-1 | 38-531-000 | |
| 8 | O Ring (Distributor 2) x1 | 0.01 | BD531-SK-DIST-2 | 38-531-000 | |
| 9 | Distributor | 0.37 | BD531-DIST | 29-531-000 | |
| 10 | Check Valve/Plunger | 0.08 | BD531-CVALVE | 25-531-000 | |
| 11 | O Ring (Check Valve) x1 | 0.01 | BD531-SK-CVALVE | 38-531-000 | |
| 12 | Spring | 0.1 | BD531-SPRING | 22-531-000 | |
| 13 | Mount Sample Tube | 0.49 | BD531-STUBE-MOUNT | - | |
| 14 | Inner Cyclinder/Top Barrel | 3.4 | BD531-ICYL | 31-531-000 | |
| 15 | O Ring (Inner Cylinder) x1 | 0.01 | BD531-SK-ICYL | 38-531-000 | |
| 16 | Piston | 4.69 | BD531-PISTON | 36-531-000 | |
| 17 | External Cylinder/Barrel/Piston Case | 9.2 | BD531-ECYL | 35-531-000 | |
| 18 | Seal Cover/ O Ring (Bearing Bush) x2 | 0.02 | BD531-SCOVER | - | |
| 19 | Bearing Bush | 1.03 | BD531-BUSH | 26-531-000 | |
| 20 | Bit Stop Ring | 0.08 | BD531-SRING | 27-531-000 | |
| 21 | O Ring (Bit Stop Ring) x1 | 0.01 | BD531-SK-SRING | 38-531-000 | |
| 22 | Shroud | 0.45 | BD531-SHROUD-85/83 | 40-531-305 | |
| 23 | Drive Sub | 1.6 | BD531-DSUB | 16-531-000 | |
| 24 | Drill Bit | 4.2 | BD531-85DC-TV | 62-531-306CF | |
| 25 | Seal Kit (Item 2+4+7+8+11+18+21) | 0.2 | BD531-SK | 38-531-000 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1069mm | 29.0 Kg | Φ81mm | BD531 | Φ84- Φ100 | 3" Remet |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1100x110x120mm | 30Hz | 25-40r/min | 300-1200(CFM) | ||

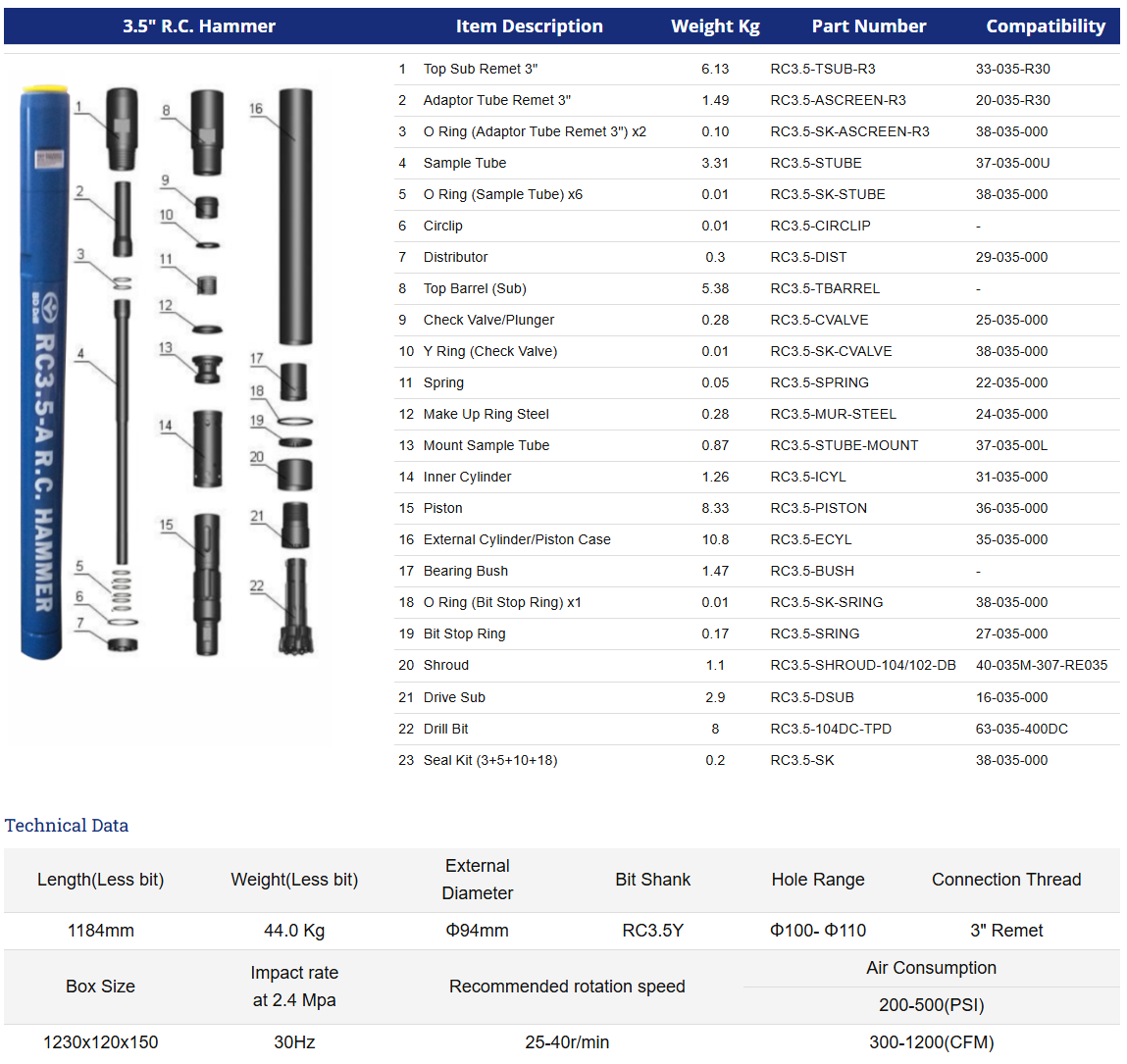

RC3.5 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE035, AD620
Click Here for more detailed information
| 3.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | 1 | Top Sub Remet 3" | 6.13 | RC3.5-TSUB-R3 | 33-035-R30 |
| 2 | Adaptor Tube Remet 3" | 1.49 | RC3.5-ASCREEN-R3 | 20-035-R30 | |
| 3 | O Ring (Adaptor Tube Remet 3") x2 | 0.10 | RC3.5-SK-ASCREEN-R3 | 38-035-000 | |
| 4 | Sample Tube | 3.31 | RC3.5-STUBE | 37-035-00U | |
| 5 | O Ring (Sample Tube) x6 | 0.01 | RC3.5-SK-STUBE | 38-035-000 | |
| 6 | Circlip | 0.01 | RC3.5-CIRCLIP | - | |
| 7 | Distributor | 0.3 | RC3.5-DIST | 29-035-000 | |
| 8 | Top Barrel (Sub) | 5.38 | RC3.5-TBARREL | - | |
| 9 | Check Valve/Plunger | 0.28 | RC3.5-CVALVE | 25-035-000 | |
| 10 | Y Ring (Check Valve) | 0.01 | RC3.5-SK-CVALVE | 38-035-000 | |
| 11 | Spring | 0.05 | RC3.5-SPRING | 22-035-000 | |
| 12 | Make Up Ring Steel | 0.28 | RC3.5-MUR-STEEL | 24-035-000 | |
| 13 | Mount Sample Tube | 0.87 | RC3.5-STUBE-MOUNT | 37-035-00L | |
| 14 | Inner Cylinder | 1.26 | RC3.5-ICYL | 31-035-000 | |
| 15 | Piston | 8.33 | RC3.5-PISTON | 36-035-000 | |
| 16 | External Cylinder/Piston Case | 10.8 | RC3.5-ECYL | 35-035-000 | |
| 17 | Bearing Bush | 1.47 | RC3.5-BUSH | - | |
| 18 | O Ring (Bit Stop Ring) x1 | 0.01 | RC3.5-SK-SRING | 38-035-000 | |
| 19 | Bit Stop Ring | 0.17 | RC3.5-SRING | 27-035-000 | |
| 20 | Shroud | 1.1 | RC3.5-SHROUD-104/102 | 40-035M-307-RE035 | |
| 21 | Drive Sub | 2.9 | RC3.5-DSUB | 16-035-000 | |
| 22 | Drill Bit | 8 | RC3.5-104DC-TV | 63-035-400DC | |
| 23 | Seal Kit (3+5+10+18) | 0.2 | RC3.5-SK | 38-035-000 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1184mm | 44.0 Kg | Φ94mm | RC3.5Y | Φ100- Φ110 | 3" Remet |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1230x120x150 | 30Hz | 25-40r/min | 300-1200(CFM) | ||

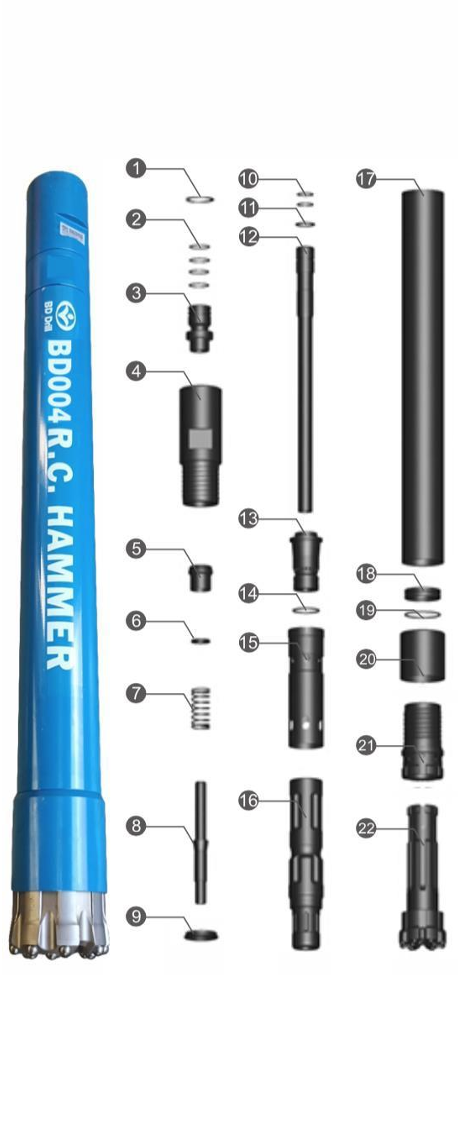

BD004 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE004
Click Here for more detailed information

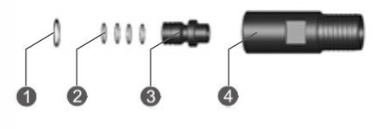

| 4" R.C. Hammer | Item Description | Weight Kg. | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | A | Top Sub Assy Remet 3.5" | |||
| 1 | Circlip | 0.02 | BD004-CIRCLIP | 41-D1300-0680 | |
| 2 | O Ring (Adaptor Tube Remet 3.5) x 4 | 0.02 | BD004-SK-ASCREEN3.5 | 20-004-R35 | |
| 3 | Adaptor Tube Remet 3.5" | 1.06 | BD004-ASCREEN-R3.5 | - | |
| 4 | Top Sub Remet 3.5" | 7.79 | BD004-TSUB-R3.5 | 33-004-R35 | |
| B | Top Sub Assy Remet 4" | ||||
| 1 | Circlip | 0.02 | BD004-CIRCLIP | 41-D1300-0680 | |
| 2 | O Ring (Adaptor Tune Remet 4") x 4 | 0.02 | BD004-SK-ASCREENR4 | 20-004-R40 | |
| 3 | Adaptor Tube Remet 4" | 1.06 | BD004-ASCREEN-R4 | - | |
| 4 | Top Sub Remet 4" | 7.79 | BD004-TSUB-R4 | 33-004-R40 | |
| B | Top Sub Assy Metzke 4" | ||||
| 1 | Circlip | 0.02 | BD004-CIRCLIP | 41-D1300-0680 | |
| 2 | O Ring (Adaptor Metzke 4") x 2 | 0.02 | BD004-SK-ASCREENM4 | 20-004-MR40 | |
| 3 | Adaptor Tube Metzke 4" | 1.06 | BD004-ASCREEN-M4/54 BD004-ASCREEN-M4/57 | - | |
| 4 | Top Sub-Metzke 4" | 7.79 | BD004-TSUB-M4 | 33-004-M40 | |
 | Parts List | ||||
| 5 | Check Valve/Plunger | 0.50 | BD004-CVALVE | 25-004-000 | |
| 6 | Y Ring (Check Valve) | 0.01 | BD004-SK-CVALVE | - | |
| 7 | Spring | 0.06 | BD004-SPRING | 22-004-000 | |
| 8 | Sample Tube Upper | 0.74 | BD004-STUBE-U | 37-004-00U | |
| 9 | Make Up Ring, Steel | 0.17 | BD004-MUR-STEEL | 24-004-000 | |
| 10 | O Ring (Sample Tube) x 2 | 0.02 | BD004-SK-STUBE1 | 38-004-000 | |
| 11 | O Ring (Sample Tube) x 1 | 0.02 | BD004-SK-STUBE2 | 38-004-000 | |
| 12 | Sample Tube Lower | 2.38 | BD004-STUBE | 37-004-00L | |
| 13 | Distributor | 1.75 | BD004-DIST | 29-004-000 | |
| 14 | O Ring Distributor | 0.02 | BD004-SK-DIST | 38-004-000 | |
| 15 | Inner Cylinder | 2.45 | BD004-ICYL | 31-004-000 | |
| 16 | Piston | 10.45 | BD004-PISTON | 36-004-000 | |
| 17 | Piston Case with Bush (cold press) | 17.95 | BD004-ECYL | 35-004-000 | |
| 18 | Bit Stop Ring | 0.29 | BD004-SRING | 27-004-000 | |
| 19 | O Ring (Bit Stop Ring) | 0.02 | BD004-SK-SRING | 38-004-000 | |
| 20 | Shroud | 1.05 | BD004-SHROUD-115/113 | 40-004-407 | |
| 21 | Drive Sub | 3.13 | BD004-DSUB | 16-004-000 | |
| 22 | Drill Bit | 11.7 | BD004-115DC-TV | 62-004-408DC | |
Technical data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1252mm | 52.0 Kg | Φ107mm | BD004 | Φ111 - Φ127 | 3.5" - 4" Remet 4" Metzke |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1300x150x180mm | 30Hz | 25-40r/min | 300-1200(CFM) | ||
BD542 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE542, MR109
Click Here for more detailed information

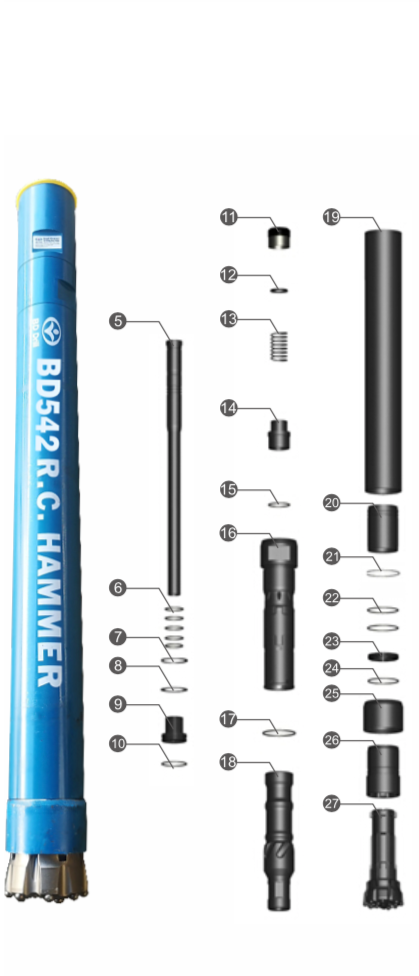

| 3.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | A | Crossover Sub Assy PIN Metzke 4"(54mm) to Remet 4" PIN to BOX CROSSOVER SUB ASSEMBLY OD116mm RC-SUBA-PM4BR4-107 | |||
| 1 | Top Sub Remet 4" | 7.79 | BD542-TSUB-R4 | 33-542-R40 | |
| 2 | Adaptor Tube Remet 4" | 1.06 | BD543/542-ASCREEN-R4 | 20-540-R40 | |
| 3 | O Ring (Adaptor Tube Remet 4") x4 | 0.02 | BD543/542-SK-ASCREENR4 | 38-542-000 | |
| 4 | Circlip A | 0.02 | BD543/542-CIRCLIP-ASCREENR4 | 41-D1300-0800 | |
 | Parts List | ||||
| 5 | Sample Tube | 3.5 | BD543/542-STUBE-M4/54 | 37-542-000 | |
| 6 | O Ring (Sample Tube) x 5 | 0.02 | BD543/542-SK-STUBE | 38-542-000 | |
| 7 | Circlip B | 0.02 | BD543/542-CIRCLIP-4 | 41-D1300-0800 | |
| 8 | Air Screen | 0.04 | BD543/542/AIRSCREEN | 21-542-000 | |
| 9 | Distributor | 0.56 | BD543/542-DIST | 29-542-000 | |
| 10 | O RIng (Distributor) | 0.02 | BD543/542-SK-DIST | 38-542-000 | |
| 11 | Check Valve/Plunger | 0.5 | BD543/542-CVALVE | 25-542-000 | |
| 12 | Y Ring (Check Valve) | 0.02 | BD543/542-SK-CVALVE | 38-542-000 | |
| 13 | Spring | 0.08 | BD543/542/SPRING | 22-542-000 | |
| 14 | Mount Sample Tube | 0.86 | BD543/542-STUBE-M | - | |
| 15 | O Ring (Mount Sample Tube) | 0.02 | BD543/542-SK-STUBEM | 38-542-000 | |
| 16 | Inner Cylinder/Top Barrel | 7.26 | BD543-ICYL-M4/54 | 31-543-000 | |
| 17 | O Ring (Inner Cylinder) | 0.02 | BD543/542-SK-ICYL | 38-542-000 | |
| 18 | Piston | 11.64 | BD543/542-PISTON | 36-542-000 | |
| 19 | External Cylinder/Piston Case | 19.17 | BD543-ECYL | 35-543-000 | |
| 20 | Bearing Bush | 0.05 | BD543/542-BUSH | 26-542-000 | |
| 21 | Piston Retaining Ring | 2.35 | BD543/542-PRING | 23-542-000 | |
| 22 | O Ring (Bearing Bush) x2 | 0.02 | BD543/542-SK-BUSH | 38-542-000 | |
| 23 | Bit Ring | 0.26 | BD543/542-SRING | 27-542-000 | |
| 24 | O Ring (Bit Ring) | 0.02 | BD543/542-SK-SRING | 38-542-000 | |
| 25 | Shroud | 2.21 | BD543/542-SHROUD-127/125 | 40-542-415 | |
| 26 | Drive Sub | 2.94 | BD543/542-DSUB | 16-542-000 | |
| 27 | Drill Bit | 10.96 | BD543/542-127DC | 62-542-500DC | |
| 28 | Seal Kit (Item 2+6+10+12+15+17+22+24) | 0.30 | BD543/542-SK | 38-542-000 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1191 | 57.0 Kg | Φ109.5mm | BD542 | Φ113- Φ130 | 3.5" Remet 4" Metzke |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1230x140x170mm | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD543 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE543, MR116, AD638
Click Here for more detailed information

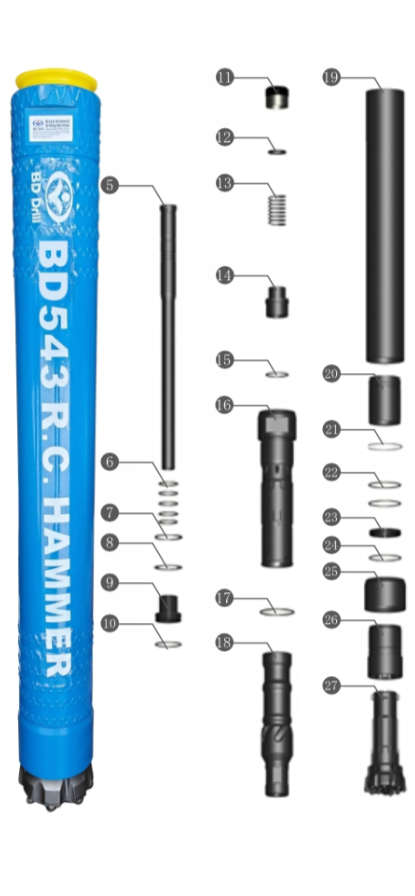

| 4.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
| A | Crossover Sub Assy PIN Metzke 4"(54mm) to Remet 4" PIN to BOX Crossover Sub Assembly OD 116mm RC-SUBA-PM4BR4-116/54 | |||
| 1 | Top Sub Remet 4" | 7.79 | BD543-TSUB-R4 | 33-542-R40 | |

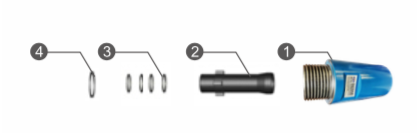

| 2 | Adaptor Tube Remet 4" | 1.06 | BD543/542-ASCREEN-R4 | 20-540-R40 | |
| 3 | O Ring (Adaptor Tube Remet 4") x4 | 0.02 | BD543/542-SK-ASCREENR4 | 38-542-000 | |
| 4 | Circlip A | 0.02 | BD543/542-CIRCLIP-ASCREENR4 | 41-D1300-0800 | |
 | Parts List | ||||
| 5 | Sample Tube | 3.5 | BD543/542-STUBE-M4/54 | 37-542-000 | |
| 6 | O Ring (Sample Tube) x 5 | 0.02 | BD543/542-SK-STUBE | 38-542-000 | |
| 7 | Circlip B | 0.02 | BD543/542-CIRCLIP-4 | 41-D1300-0800 | |
| 8 | Air Screen | 0.04 | BD543/542/AIRSCREEN | 21-542-000 | |
| 9 | Distributor | 0.56 | BD543/542-DIST | 29-542-000 | |
| 10 | O RIng (Distributor) | 0.02 | BD543/542-SK-DIST | 38-542-000 | |
| 11 | Check Valve/Plunger | 0.5 | BD543/542-CVALVE | 25-542-000 | |
| 12 | Y Ring (Check Valve) | 0.02 | BD543/542-SK-CVALVE | 38-542-000 | |
| 13 | Spring | 0.08 | BD543/542/SPRING | 22-542-000 | |
| 14 | Mount Sample Tube | 0.86 | BD543/542-STUBE-M | - | |
| 15 | O Ring (Mount Sample Tube) | 0.02 | BD543/542-SK-STUBEM | 38-542-000 | |
| 16 | Inner Cylinder/Top Barrel | 7.26 | BD543-ICYL-M4/54 | 31-543-000 | |
| 17 | O Ring (Inner Cylinder) | 0.02 | BD543/542-SK-ICYL | 38-542-000 | |
| 18 | Piston | 11.64 | BD543/542-PISTON | 36-542-000 | |
| 19 | External Cylinder/Piston Case | 19.17 | BD543-ECYL | 35-543-000 | |
| 20 | Bearing Bush | 0.05 | BD543/542-BUSH | 26-542-000 | |
| 21 | Piston Retaining Ring | 2.35 | BD543/542-PRING | 23-542-000 | |
| 22 | O Ring (Bearing Bush) x2 | 0.02 | BD543/542-SK-BUSH | 38-542-000 | |
| 23 | Bit Ring | 0.26 | BD543/542-SRING | 27-542-000 | |
| 24 | O Ring (Bit Ring) | 0.02 | BD543/542-SK-SRING | 38-542-000 | |
| 25 | Shroud | 2.21 | BD543/542-SHROUD-127/125 | 40-542-415 | |
| 26 | Drive Sub | 2.94 | BD543/542-DSUB | 16-542-000 | |

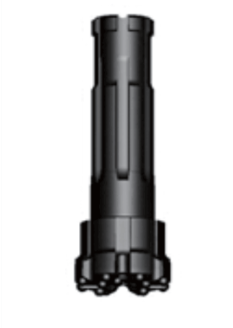

| 27 | Drill Bit | 10.96 | BD543/542-127DC | 62-542-500DC | |
| 28 | Seal Kit (Item 2+6+10+12+15+17+22+24) | 0.30 | BD543/542-SK | 38-542-000 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1191 | 62.0 KG | Φ116mm | BD543 | Φ113- Φ133 | 3" - 4" Remet 4" Metzke |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1230x140x170mm | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD545 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE545, MR116, AD638
Click Here for more detailed information
| 5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|

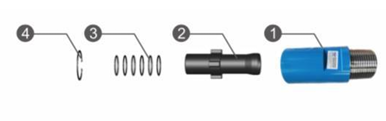

 | A | Crossover Sub Assy PIN Metzke 4.5"(57mm) to Remet 4.5" PIN to BOX Crossover Sub Assembly OD117mm ADAPT-PM4BR4-117/57 | |||
| 1 | Top Sub Remet 4.5" | 7.79 | SUB-RC-PM45BR45-117 | 33-545-R45 | |
| 2 | Adaptor Tube Remet 4.5" | 1.06 | ADAPT-ATUBE-PM45BR45 | 20-545-R45 | |
| 3 | O Ring (Adaptor Tube Remet 4.5") x6 | 0.02 | SK-BR45 | 38-545-000 | |
| 4 | Circlip A | 0.02 | BD545-CIRCLIP-A | 41-D1300-0900 | |
 | Parts List | ||||
| 5 | Sample Tube | 4.61 | BD545-STUBE-M4.5 | 37-545-000 | |
| 6 | O Ring (Sample Tube) x4 | 0.02 | BD545-SK-STUBE | 41-D1300-0900 | |
| 7 | Circlip B | 0.02 | BD545-CIRCLIP-4 | 41-D1300-0850 | |
| 8 | Air Screen | 0.04 | BD545-AIRSCREEN | 21-545-000 | |
| 9 | Distributor | 0.48 | BD545-DIST | 29-545-000 | |
| 10 | O RIng (Distributor) | 0.02 | BD545-SK-DIST | 41-D1300-0900 | |
| 11 | Check Valve/Plunger | 0.53 | BD545-CVALVE | 25-545-000 | |
| 12 | Y Ring (Check Valve) | 0.02 | BD545-SK-CVALVE | 41-D1300-0900 | |
| 13 | Spring | 0.12 | BD545-SPRING | 22-545-000 | |
| 14 | O Ring (Inner Cylinder) | 0.02 | BD545-SK-ICYL | 41-D1300-0900 | |
| 15 | Inner Cylinder/Top Barrrel | 10.2 | BD545-ICYL-M4.5 | 31-545-000 | |
| 16 | Piston | 15.1 | BD545-PISTON | 36-545-000 | |
| 17 | External Cylinder/Piston Case | 17.2 | BD545-ECYL | 35-545-000 | |
| 18 | Bearing Bush | 2.95 | BD545-BUSH | 26-545-000 | |
| 19 | O Ring (Bearing Bush) x4 | 0.05 | BD545-SK-BUSH | 41-D1300-0900 | |
| 20 | Bush Retaining Ring | 0.02 | BD545-PRING | 23-542-000 | |
| 21 | Bit Ring | 0.26 | BD545-SRING | 27-545-000 | |
| 22 | O Ring (Bit Ring) | 0.02 | BD545-SK-SRING | 41-D1300-0900 | |
| 23 | Shroud | 1.6 | BD545-SHROUD127/125 | 40-545-415 | |
| 24 | Drive Sub | 3.41 | BD545-DSUB | 16-545-000 | |
| 25 | Drill Bit | 12.6 | BD545-133DC | 63-545-504DC | |
| 26 | Seal Kit (Item 2+4+7+11+13+15+20+23) | 0.3 | BD545-SK | 41-D1300-0900 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1261mm | 65.0Kg | Φ117.5mm | BD545 | Φ123- Φ140 | 4" - 4.5" Remet 4" - 4.5" Metzke |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1260x150x180mm | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD547 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE547
Click Here for more detailed information
| 5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|

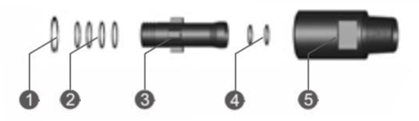

 | A | Top Sub Assy Remet 4.5" | |||
| 1 | Circlip A | 0.04 | BD547-CIRCLIP-R4.5 | 41-D1300-0900 | |
| 2 | O Ring (Adaptor Tube Remet 4.5") x4 | 0.02 | BD547-SK-ASCREEN4.5 | 38-547-000 | |
| 3 | Adaptor Tube Remet 4.5" | 2.95 | BD547-ASCREEN-R4.5 | 20-545-R45 | |
| 4 | O Ring (Adaptor Tube) x2 | 0.02 | BD547-SK-ASCREENMR | 38-547-000 | |
| 5 | Top Sub Remet 4.5" | 6.98 | BD547-TSUB-R4.5 | 33-547-R45 | |

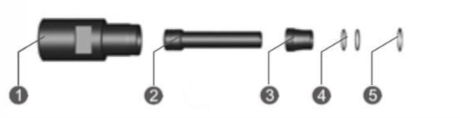

| B | Top Sub Assy Metzke 4.5" | ||||
| 1 | Circlip A | 0.04 | BD547-CIRCLIP-M4.5 | 41-D1300-0850 | |
| 2 | Adaptor Tube Metzke 4.5 | 2.95 | BD547-ASCREEN-M4.5 | 20-545-M45 | |
| 3 | O Ring (Adaptor Tube) x2 | 0.02 | BD547-SK-ASCREENMR | 38-547-000 | |
| 4 | Top Sub Metzke 4.5" | 6.98 | BD547-TSUB-M4.5 | 33-547-M45 | |
 | Parts List | ||||
| 5 | Sample Tube | 4.61 | BD547-STUBE | 37-545-000 | |
| 6 | O Ring (Sample Tube) x4 | 0.02 | BD547-SK-TUBE | 38-547-000 | |
| 7 | Circlip B | 0.02 | BD547-CIRCLIP-4 | 41-D1300-0850 | |
| 8 | Air Screen | 0.04 | BD547-AIRSCREEN | 21-545-000 | |
| 9 | Distributor | 0.48 | BD547-DIST | 29-545-000 | |
| 10 | O Ring (Distributor) x2 | 0.02 | BD547-SK-DIST | 38-547-000 | |
| 11 | Check Valve/Plunger | 0.53 | BD547-CVALVE | 25-545-000 | |
| 12 | Y Ring (Check Valve) | 0.02 | BD547-SK-CVALVE | 38-547-000 | |
| 13 | Spring | 0.12 | BD547-SPRING | 22-545-000 | |
| 14 | O Ring (Inner Cylinder) | 0.02 | BD547-SK-ICYL | 38-547-000 | |
| 15 | Inner Cylinder/Top Barrrel | 10.2 | BD547-ICYL | 31-547-000 | |
| 16 | Piston | 15.1 | BD547-PISTON | 36-547-000 | |
| 17 | External Cylinder/Piston Case | 17.2 | BD547-ECYL | 35-547-000 | |
| 18 | Bearing Bush | 2.95 | BD547-BUSH | 26-547-000 | |
| 19 | O Ring (Bearing Bush) x2 | 0.05 | BD547-SK-BUSH | 38-547-000 | |
| 20 | Bush Retaining Ring | 0.02 | BD547-PRING | 23-547-000 | |
| 21 | Bit Ring | 0.26 | BD547-SRING | 27-547-000 | |
| 22 | O Ring (Bit Ring) | 0.02 | BD547-SK-RING | 38-547-000 | |
| 23 | Shroud | 1.6 | BD547-SHROUD-127/125 | 40-547-501 | |
| 24 | Drive Sub | 3.41 | BD547-DSUB | 16-547-000 | |
| 25 | Drill Bit | 12.6 | BD547-133DC | 63-547-504CF | |
| 26 | Seal Kit (Item 2+4+7+11+13+15+20+23) | 0.3 | BD545-SK | 38-547-000 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1292mm | 80.0 Kg | Φ124.4mm | BD547 | Φ133- Φ146 | 4" - 4.5" Remet 4" - 4.5" Metzke |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1300x160x190mm | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD040 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE040, PR40, RE052, MR120, AD660
Click Here for more detailed information
| 5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|

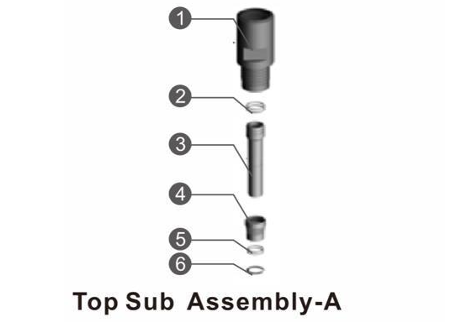

 | A | Top Sub Assy Remet 4" | |||
| 1 | Top Sub Remet 4" | 7.79 | BD040-TSUB-R4 | 33-040-R40 | |
| 2 | O Ring (Adaptor Tube Remet 4") x2 | 0.02 | BD040-SK-ASCREEN-R4 | 38-040-001 | |
| 3 | Adaptor Tube Remet 4" | 1.51 | BD040-ASCREEN-R4 | 20-052-R40 | |
| 4 | Air Screen | 0.5 | BD040-AIRSCREEN | 21-040-00B | |
| 5 | O Ring (Air Screen) x2 | 0.02 | BD040-SK-AIRSCREEN | 38-040-001 | |
| 6 | Circlip | 0.02 | BD040-CIRCLIP | 41-D1400-0450 | |

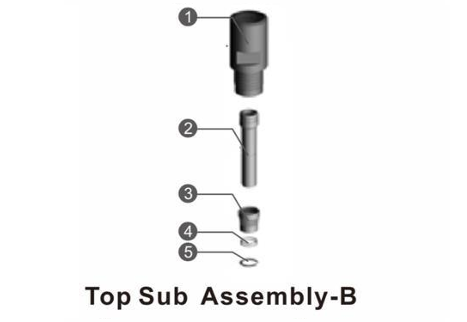

 | B | Top Sub Assy Metzke 4" | |||
| 1 | Top Sub Metzke 4" | 7.79 | BD040-TSUB-M4 | 33-040-M40 | |
| 2 | Adaptor Tube Metzke 4" | 1.51 | BD040-ASCREEN-M4 | 20-040-M40 | |
| 3 | Air Screen | 0.5 | BD040-AIRSCREEN | 21-040-00B | |
| 4 | O Ring (Air Screen) x2 | 0.02 | BD040-SK-AIRSCREEN | 38-040-001 | |
| 5 | Circlip | 0.02 | BD040-CIRCLIP | 41-D1400-0450 | |
 | C | Top Sub Assy Metzke 4.5" | |||
| 1 | Top Sub Metzke 4.5" | 7.79 | BD040-TSUB-M4.5 | 33-040-M45 | |
| 2 | Adaptor Tube Metzke 4.5" | 1.51 | BD040-ASCREEN-M4.5 | 20-040-M45 | |
| 3 | Air Screen | 0.5 | BD040-AIRSCREEN | 21-040-00B | |
| 4 | O Ring (Air Screen) x2 | 0.02 | BD040-SK-AIRSCREEN | 38-040-001 | |
| 5 | Circlip | 0.02 | BD040-CIRCLIP | 41-D1400-0450 | |

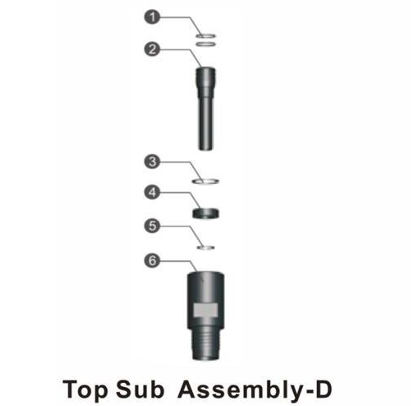

 | D | Top Sub Assy Remet 4.5" | |||
| 1 | O Ring (Adaptor Tube Remet 4.5") x2 | 0.02 | BD040/52-SK-ASCREEN-R4.5 | 41-D1400-0450 | |
| 2 | Adaptor Tube Remet 4.5" | 1.51 | BD040/52-ASCREEN-R4.5 | 20-040-R45 | |
| 3 | Circlip A | 0.02 | BD040/52-CIRCLIP-1 | 41-D1300-0850 | |
| 4 | Air Screen | 0.5 | BD040/52-AIRSCREEN-R4.5 | 21-040-00T | |
| 5 | Circlip B | 0.02 | BD040/52-CIRCLIP-2 | 41-D1400-0520 | |
| 6 | Top Sub Remet 4.5" | 7.79 | BD040-TSUB-R4.5 | 33-040-R45 | |

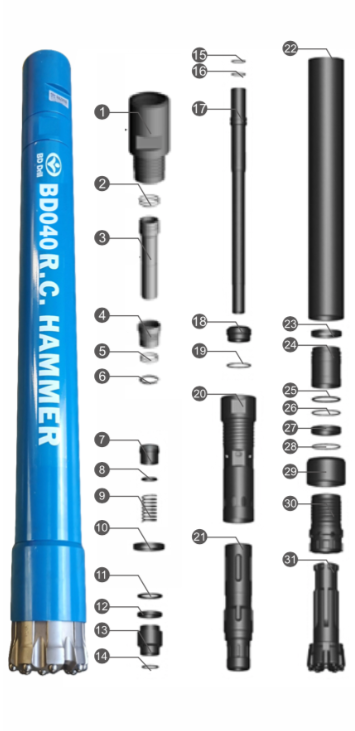

| 5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | 7 | Check Valve/Plunger | 0.63 | BD040/52-CVALVE | 25-052-000 |
| 8 | Y Ring (Check Valve) | 0.01 | BD040/52-SK-CVALVE | 38-040-001 | |
| 9 | Spring | 0.12 | BD040/52-SPRING | 22-040-000 | |
| 10 | Spring Seat | 0.12 | BD040/52-SSEAT | 39-040-000 | |
| 11 | Make Up Ring, Steel | 0.09 | BD040/52-MUR-STEEL | 24-040-000 | |
| 12 | Make Up Ring, Viton | 0.06 | BD040/52-MUR-VITON | 28-040-000 | |
| 13 | Distributor | 1.75 | BD040/52-DIST | 29-040-000 | |
| 14 | O Ring (Distributor) x1 | 0.02 | BD040/52-SK-DIST | 38-040-001 | |
| 15 | O Ring (Sample Tube) x2 | 0.02 | BD040-SK-STUBE1 | 38-040-001 | |
| 16 | O Ring (Sample Tube) x1 | 0.02 | BD040-SK-STUBE2 | 38-040-001 | |
| 17 | Sample Tube Lower | 4.32 | BD040-STUBE | 37-040-000 | |
| 18 | Mount Sample Tube | 1.0 | BD040-STUBE-MOUNT | 30-040-000 | |
| 19 | O Ring (Mount Sample Tube) x1 | 0.02 | BD040-SK-STUBE-M | 38-040-001 | |
| 20 | Inner Cylinder | 7.69 | BD040-ICYL | 31-040-000 | |
| 21 | Piston | 13.63 | BD040-PISTON | 36-040-000 | |
| 22 | External Cylinder/Piston Case | 21.14 | BD040-ECYL | 35-040-000 | |
| 23 | Piston Retaining Ring | 0.1 | BD040-PRING | 23-040-000 | |
| 24 | Bearing Bush | 1.89 | BD040-BUSH | 26-040-000 | |
| 25 | O Ring (Bearing Bush) x1 | 0.02 | BD040-SK-BUSH1 | 38-040-001 | |
| 26 | O Ring (Bearing Bush) x1 | 0.02 | BD040-SK-BUSH2 | 38-040-001 | |
| 27 | Bit Stop Ring | 0.31 | BD040-SRING | 27-040-000 | |
| 28 | O Ring (Bit Stop Ring) x1 | 0.02 | BD040-SK-SRING | 38-040-001 | |
| 29 | Shroud | 2.2 | BD040-SHROUD-136/134 | 40-040-506 | |
| 30 | Drive Sub | 3.67 | BD040-DSUB | 16-040-000 | |
| 31 | Drill Bit | 15.09 | BD040-135DC-TV | 63-040-506DC | |
| 32 | Seal Kit (Item 2+5+8+14+15+16+19+25+26+28) | 0.3 | BD040-SK | 38-040-001 | |
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1362mm | 80.5 Kg | Φ120.5mm | BD040 | Φ124- Φ142 | 3.5" - 4.5" Remet 3.5" - 4.5" Metzke |
| Working Pressure | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1.5-3.5 Mpa | 35Hz | 25-40r/min | 300-1200(CFM) | ||
RC121-BD040 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE545, RE040, PR40, AD650, RC45, MR120
Click Here for more detailed information
| 4.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|

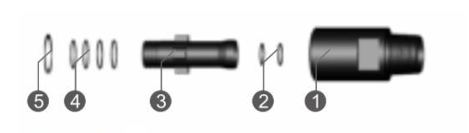

 | A | Crossover Sub Remet 4 1/2" | |||
| 1 | Adapter Sub | 7.5 | ADAPT-SUB-PM45BR45-121 | - | |
| 2 | O Ring (Box Remet 4.5") | 0.02 | SK-BR45 | - | |
| 3 | Adaptor Tube Pin to Box | 1.5 | ATUBE-PM45BR45 | - | |
| 4 | O Ring (Pin Metzke 4.5") | 0.02 | SKOPM45 | - | |
| 5 | Circlip | 0.02 | BD67/RC121-CIRCLIP | - | |
| Parts list | |||||
 | 6 | Inner Cylinder | 8.95 | RC121-ICYL-M4.5 | |
| 7 | O Ring (Inner Cylinder) x1 | 0.02 | RC121-SK-ICYL | - | |
| 8 | Sample Tube | 5.2 | RC121-STUBE-H | - | |
| 9 | O Ring (Sample Tube) x5 | 0.02 | BD67/RC121-SK-STUBE | - | |
| 10 | Circlip B | 0.02 | BD67/RC121-CIRCLIP-1 | - | |
| 11 | Air Screen | 0.02 | BD67/RC121-AIRSCREEN-1 | - | |
| 12 | Distributor | 0.48 | BD67/RC121-DIST-1 | - | |
| 13 | O Ring (Distributor) x2 | 1.75 | BD67/RC121-SK-DIST | - | |
| 14 | Check Valve/Plunger | 0.53 | BD67/RC121-CVALVE-MHK | - | |
| 15 | Y Ring x1 | 0.02 | BD67/545/547/RC121-SK-YRING | - | |
| 16 | Spring | 0.12 | BD67/545/547/RC121/SPRING | - | |
| 17 | Piston | 14.1 | BD52/RC121-PISTON | - | |
| 18 | External Cylinder/Piston Case | 19.4 | RC121-ECYL-DK | - | |
| 19 | Bush Retaining Ring | 0.02 | RC121-SRING-BUSH | - | |
| 20 | Bearing Bush/Bush Drive Sub | 1.85 | RC121-BUSH | - | |
| 21 | O Ring (Bearing Bush) x2 | 0.02 | BD040/RC121-SK-BUSH | - | |
| 22 | Bit Retaining Ring | 0.31 | BD040/RC121-SRING-HD | - | |
| 23 | O Ring (Bit Retaining Ring) x1 | 0.02 | RC121-BD040-SK-SRING | - | |
| 24 | Piston Retaining Ring | 0.15 | RC121-RRING | - | |
| 25 | Shroud | 2.2 | BD040-136/133.5-DB | - | |
| 26 | Drive Sub | 3.67 | RC121/BD040-DSUB | - | |
| 27 | Drill Bit | 15.09 | BD040-136DC-TV | - | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1039mm | 71.0 Kg | Φ121mm | RE040 | Φ126- Φ146 | 4.5" Metzke 4.5" Remet |
| Box Size | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1340x350x350mm | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD52 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE040, PR40, RE052, MR120, AD660
Click Here for more detailed information
| 5.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | A Top Sub Assy Metzke 4.5" | ||||
| 2 | Adaptor Tube Metzke 4.5" | 2.19 | BD52-ASCREEN-M4.5 | 20-052-M45 | |
| 3 | Circlip B | 0.03 | BD52-CIRCLIP | 41-D1300-0850 | |
| 4 | Air Screen | 0.42 | BD52-AIRSCREEN-M4.5 | 21-040-00T | |
| 5 | Top Sub Metzke 4.5" | 8.92 | BD52-TSUB-M4.5 | 33-052-M45 | |
| B Top Sub Assy Remet 4.5" | |||||
| 1 | O Ring Adaptor Tube Remet 4.5" x 2 | 0.02 | BD040/52-SK-ASCREEN-R4.5 | - | |
| 2 | Adaptor Tube Remet 4.5" | 2.19 | BD040/52-ASCREEN-R4.5 | 20-040-R45 | |
| 3 | Circlip B | 0.03 | BD040/52-CIRCLIP | 41-D1300-0850 | |
| 4 | Airscreen | 0.42 | BD040/52/AIRSCREEN-R4.5 | 21-040-00T | |
| 5 | Circlip A | 0.03 | BD040/52-CIRCLIP | 41-D1400-0520 | |
| 6 | Top Sub Remet 4.5" | 8.92 | BD52-TSUB-R4.5 | 33-052-R45 | |
 | Parts List | ||||
| 7 | Check Valve/Plunger | 0.63 | BD040/52-CVALVE | 25-052-000 | |
| 8 | Y Ring (Check Valve) | 0.03 | BD040/52-SK-CVALVE | 38-052-001 | |
| 9 | Spring | 0.12 | BD040/52-SPRING | 22-040-000 | |
| 10 | Spring Seat | 0.12 | BD040/52-SSEAT | 39-040-000 | |
| 11 | Make Up Ring, Steel | 0.1 | BD040/52-MUR-STEEL | 24-040-000 | |
| 12 | Make Up Ring, Viton | 0.05 | BD040/52-MUR-VITON | 28-040-000 | |
| 13 | Distributor | 1.31 | BD040/52-DIST | 29-040-000 | |
| 14 | O Ring (Distributor) | 0.02 | BD040/52-SK-DIST | 38-052-001 | |
| 15 | O Ring (Sample Tube) x 2 | 0.02 | BD52-SK-STUBE2 | 38-052-001 | |
| 16 | O Ring (Sample Tube) x 1 | 0.02 | BD52-SK-STUBE1 | 38-052-001 | |
| 17 | Sample Tube Lower | 4.52 | BD52-STUBE | 37-052-000 | |
| 18 | Mount Sample Tube | 0.8 | BD52-STUBE-MOUNT | 30-052-000 | |
| 19 | O Ring (Mount Sample Tube) | 0.02 | BD52-SK-STUBE-M | 38-052-001 | |
| 20 | Inner Cylinder | 7.39 | BD52-ICYL | 31-052-000 | |
| 21 | Piston | 14.63 | BD52-PISTON | 36-052-000 | |
| 22 | External Cyclinder/Piston Case | 18.86 | BD52-ECYL | 35-052-000 | |
| 23 | Piston Retaining Ring | 0.13 | BD52-PRING | 23-052-000 | |
| 24 | Bearing Bush | 1.89 | BD52-BUSH | 26-052-000 | |
| 25 | O Ring (Bearing Bush) x 1 | 0.02 | BD52-SK-BUSH1 | 38-052-001 | |
| 26 | O Ring (Bearing Bush) x 1 | 0.02 | BD52-SK-BUSH2 | 38-052-001 | |
| 27 | Bit Stop Ring | 0.31 | BD52-SRING | 27-052-000 | |
| 28 | O Ring (Bit Stop Ring) | 0.02 | BD52-SK-SRING | 38-052-001 | |
| 29 | Shroud (Retaining Option) | 1.86 | BD52-SHROUD-136/134 BD52R-SHROUD-136/134 | 40-052-506 40-052M-506 |
|
| 30 | Drive Sub (Retaining Option) | 4.17 | BD52-DSUB/BD52R-DSUB | 16-052-000 16-052R-000 |
|
| 31 | Drill Bit | 11.01 | BD52-136DC or BD52R-136DC | 63-052-506DC or 63-052R-506DC | |
| 32 | Seal Kit | 0.30 | BD52-SK | 38-052-001 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1227mm | 68.5 Kg | Φ121mm | BD52 | Φ126-Φ142 | 4" - 4.5" Remet 4" - 4.5" Metzke |
| Working Pressure | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1.5-3.5 Mpa | 35Hz | 25-40r/min | 300-1200(CFM) | ||
BD54 RC Reverse Circulation Hammer
PDF Download | Compatibility: RE054, MR132, AD670, RE547
Click Here for more detailed information

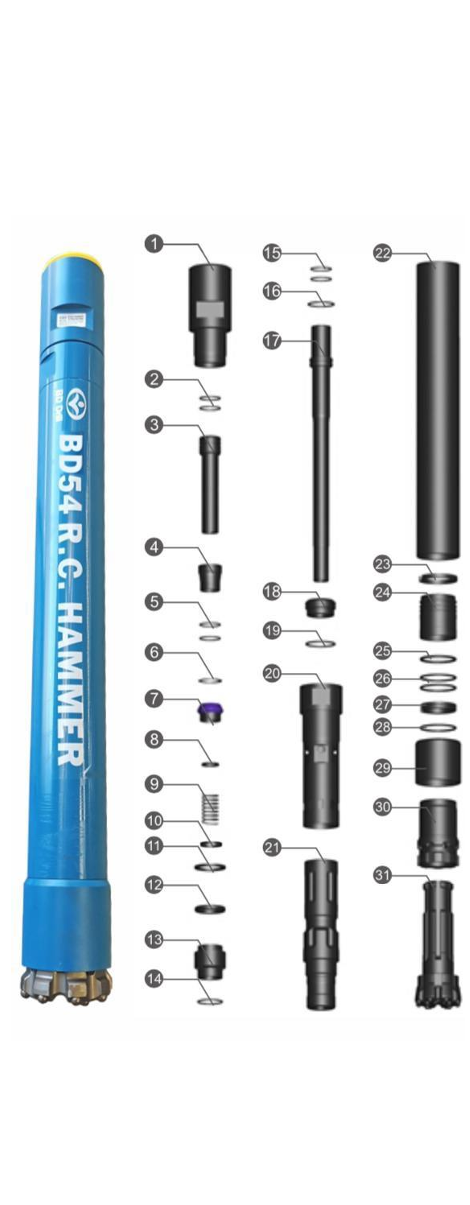

| 5.5" R.C. Hammer | Item Description | Weight Kg | Part Number | Compatibility | |
|---|---|---|---|---|---|
 | A Top Sub Assy Remet 4.5" | ||||
| 1 | Top Sub Remet 4.5" | 11.61 | BD54-TSUB-R4.5 | 33-054-R45 | |
| 2 | O Ring Adaptor Tube Remet 4.5" x 2 | 0.02 | BD54-SK-ASCREEN-R4.5 | - | |
| 3 | Adaptor Tube Remet 4.5" | 2.35 | BD54-ASCREEN-R4.5 | 20-054-R45 | |
| 4 | Airscreen | 0.50 | BD54-AIRSCREEN | 21-054-000 | |
| 5 | O Ring (Air Screen) x 2 | 0.02 | BD54-SK-AIRSCREEN | - | |
| 6 | Stop Ring | 0.04 | BD54-SRING-ASCREEN | - | |
 | A Top Sub Assy Metzke 4.5" | ||||
| 1 | Top Sub Metzke 4.5" | 11.61 | BD54-TSUB-M4.5 | 33-054-M45 | |
| 2 | Adaptor Tube Metzke 4.5" | 2.35 | BD54-ASCREEN-M4.5 | 20-054-M45 | |
| 3 | Air Screen | 0.5 | BD54-AIRSCREEN | 21-054-000 | |
| 4 | O Ring (Air Screen) x 2 | 0.02 | BD54-SK-AIRSCREEN | - | |
| 5 | Stop Ring | 0.04 | BD54-SRING-ASCREEN | - | |
 | Parts List | ||||
| 7 | Check Valve/Plunger | 0.68 | BD54-CVALVE | 25-054-000 | |
| 8 | Y Ring (Check Valve | 0.02 | BD54-SK-CVALVE | 38-054-001 | |
| 9 | Spring | 0.12 | BD54-SPRING | 22-054-000 | |
| 10 | Spring Seat | 0.12 | BD54-SSEAT | 39-054-000 | |
| 11 | Make Up Ring, Steel | 0.14 | BD54-MUR-STEEL | 24-054-000 | |
| 12 | Make Up Ring, Viton | 0.06 | BD54-MUR-VITON | 28-054-000 | |
| 13 | Distributor | 1.54 | BD54-DIST | 29-054-000 | |
| 14 | O Ring (Distributor) | 0.02 | BD54-SK-DIST | 38-054-001 | |
| 15 | O Ring (Sample Tube) x 2 | 0.02 | BD54-SK-STUBE1 | 38-054-001 | |
| 16 | O Ring (Sample Tube) x 1 | 0.02 | BD54-SK-STUBE2 | 38-054-001 | |
| 17 | Sample Tube Lower | 6.47 | BD54-STUBE | 37-054-000 | |
| 18 | Mount Sample Tube | 1.00 | BD54-STUBE-MOUNT | 30-054-000 | |
| 19 | O Ring (Mount Sample Tube) | 0.02 | BD54-SK-STUBE-M | 38-054-001 | |
| 20 | Inner Cylinder | 8.54 | BD54-ICYL | 31-054-000 | |
| 21 | Piston | 16.8 | BD54-PISTON | 36-054-000 | |
| 22 | External Cyclinder/Piston Case | 23.44 | BD54-ECYL | 35-054-000 | |
| 23 | Piston Retaining Ring | 0.2 | BD54-PRING | 23-054-000 | |
| 24 | Bearing Bush | 1.89 | BD54-BUSH | 26-054-000 | |
| 25 | O Ring (Bearing Bush) x 1 | 0.02 | BD54-SK-BUSH1 | 38-054-001 | |
| 26 | O Ring (Bearing Bush) x 1 | 0.02 | BD54-SK-BUSH2 | 38-054-001 | |
| 27 | Bit Stop Ring | 0.43 | BD54-SRING | 27-054-000 | |
| 28 | O Ring (Bit Stop Ring) | 0.02 | BD54-SK-SRING | 38-054-001 | |
| 29 | Shroud (Retaining Option) | 2.35 | BD54-SHROUD-143/141 BD54-SHROUD-136/134 | 40-054M-507 40-054RM-507 |
|
| 30 | Drive Sub (Retaining Option) | 4.9 | BD54-DSUB or BD54R-DSUB | 16-054-000 16-054R-000 |
|
| 31 | Drill Bit | 18.33 | BD54-143DC or BD54R-143DC | 63-054-510DC 63-054R-510DC |
|
| 32 | Seal Kit | 0.30 | BD54-SK | 38-054-001 | |
Technical Data
| Length(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
| 1294mm | 84.5 Kg | Φ130mm | BD54 | Φ136- Φ150 | 4.5" Remet 4.5" Metzke |
| Working Pressure | Impact rate at 2.4 Mpa | Recommended rotation speed | Air Consumption | ||
| 200-500(PSI) | |||||
| 1.5-3.5 Mpa | 35Hz | 25-40r/min | 300-1200(CFM) | ||
Reverse Circulation Drill Bits

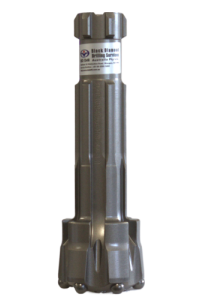

BD 531 RC Reverse Circulation Drill Bits
PDF Download
| BD 531 Reverse Circulation Drill Bit | ||||||||||
 | Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 85 | 2 1/4 | 6x12 | 4x12 | 35 | 2 | 83 | 4.2 | BD531-85DC-TPD | 62-531-306CF | |
| 89 | 2 1/2 | 8x12 | 5x12 | 35 | 2 | 87 | 4.3 | BD531-89DC-TPD | 62-531-308CF | |
| 95 | 2 3/4 | 8x12 | 6x12 | 35 | 2 | 93 | 4.6 | BD531-95DC-TP | 62-531-312CF | |
| 102 | 3 | 8x12 | 6x12 | 35 | 2 | 100 | 4.9 | BD531-102DC-TPD | 62-531-400CF | |
RC 3.5Y RC Reverse Circulation Drill Bits
PDF Download
| RC 3.5Y Reverse Circulation Drill Bit | ||||||||||
 | Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 100 | 3 15/16 | 6x16 | 6x14+6x13 | 35 | 2 | 98 | 6.3 | RC3.5-100DC-TPD | 63-035-306DC | |
| 104 | 4 1/10 | 6x16 | 6x14+6x13 | 35 | 2 | 102 | 6.6 | RC3.5-104DC-TPD | - | |
| 108 | 4 1/4 | 8x16 | 6x14+6x13 | 35 | 2 | 106 | 6.9 | RC3.5-108DC-TPD | - | |
| 114 | 4 1/2 | 8x16 | 6x14+6x13 | 35 | 2 | 112 | 7.5 | RC3.5-114DC-TPD | - | |
BD 004 RC Reverse Circulation Drill Bits
PDF Download
| BD004 Reverse Circulation Drill Bit | ||||||||||
 | Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 112 | 4 13/32 | 8x14 | 6x14 | 35 | 2 | 110 | 11.1 | BD004-112DC-TP | - | |
| 115 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 113 | 11.5 | BD004-115DC-TP | 63-004-408DC | |
| 118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | BD004-118DC-TP | 63-004-410DC | |
| 121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12.0 | BD004-121DC-TP | 63-004-412DC | |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | BD004-127DC-TP | 63-004-500DC | |
BD 542 RC Reverse Circulation Drill Bits
PDF Download
| BD542 Reverse Circulation Drill Bit | ||||||||||
| Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | BD542-121DC | 63-542-412DC | |
| 124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | BD542-124DC | 63-542-414DC | |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11.0 | BD442-127DC | 63-542-500DC | |
| 130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | BD542-130DC | 63-542-502DC | |
BD 543 RC Reverse Circulation Drill Bits
PDF Download
| BD543 Reverse Circulation Drill Bit | ||||||||||
 | Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | BD543/542-124DC-TPD | 63-542-414DC | |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11.0 | BD543/542-127DC-TPD | 63-542-500DC | |
| 130 | 5 1/8 | 8x16 | 10x14 | 35 | 2 | 128 | 11.3 | BD543/542-130DC-TPD | 63-542-502DC | |
| 133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 128 | 11.8 | BD543/542-133DC-TPD | 63-542-504DC | |
BD 545 RC Reverse Circulation Drill Bits
PDF Download
| BD545 Reverse Circulation Drill Bit | ||||||||||
| Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 13.3 | BD545-124DC-TP | 63-545-414DC | |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 13.5 | BD545-127DC-TPD | 63-545-500DC | |
| 133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 13.8 | BD545-133DC-TPD | 63-545-504DC | |
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 14.2 | BD545-136DC-TPD | 63-545-506CF | |
BD 547 RC Reverse Circulation Drill Bits
PDF Download
| BD547 Reverse Circulation Bit | ||||||||||
| Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 133 | 5 1/4 | 8x16 | 8x13 | 35 | 2 | 131 | 11.2 | BD547-133DC-TPD | 63-547-504HF | |
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | BD547-136DC-TPD | 63-547-506DC | |
| 140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | BD547-140DC-TPD | 63-547-508DC | |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | BD547-143DC-TPD | 63-547-510DC | |
BD 040 RC Reverse Circulation Drill Bits
PDF Download
| BD040 Reverse Circulation Drill Bit | ||||||||||
 | Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 14.3 | BD040-124DC-TPD | - | |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 14.7 | BD040-127DC-TPD | 63-040-502DC | |
| 133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 15.2 | BD040-133DC-TPD | 63-040-504DC | |
| 140 | 5 7/16 | 8x16 | 6x16+3x14 | 35 | 2 | 136 | 15.8 | BD040-140DC-TPD | 63-040-508DC | |
BD 52 RC Reverse Circulation Drill Bits
PDF Download
| BD52 Reverse Circulation Drill Bit | ||||||||||
| Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | BD52-133DC-TPD | 63-052-504DC | |
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | BD52-136DC-TPD | 63-052-506DC | |
| 140 | 5 7/16 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | BD52-140DC-TPD | 63-052-508DC | |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | BD52-143DC-TPD | 63-052-510DC | |
BD 54 RC Reverse Circulation Drill Bits
PDF Download
| BD54 Reverse Circulation Drill Bit | ||||||||||
| Diameter | Number x Button Diameter, mm | Button Angle° | Flushing Holes | Shroud Diameter, mm | Weight, Kg | Part Number | Compatibility | ||
| mm | Inch | Gauge Buttons | Front Buttons |
|||||||
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 18.2 | BD54-136DC-TPD | 63-054-506DC | |
| 140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 18.5 | BD54-140DC-TPD | 63-054-508DC | |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 18.8 | BD54-143DC-TPD | 63-054-510DC | |
| 146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 19.2 | BD54-146DC-TPD-SDP | 63-054-512DC | |
Reverse Circulation Shrouds
BD 531 RC Reverse Circulation Shrouds
PDF Download
| BD 531 Reverse Circulation Shrouds | |||||
 | Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 85 | 3 3/8 | 0.7 | BD531-SHROUD-85/83-DB | 40-531-305 | |
| 89 | 3 1/2 | 0.8 | BD531-SHROUD-89/87-DB | 40-531-307 | |
| 92 | 3 5/8 | 0.8 | BD531-SHROUD-92/90-DB | - | |
| 95 | 3 3/4 | 0.9 | BD531-SHROUD-95/93-DB | 40-531-311 | |
| 98 | 3 7/8 | 0.9 | BD531-SHROUD-98/96-DB | - | |
| 102 | 4 | 0.9 | BD531-SHROUD-102/100-DB | 40-531-315 | |
RC 3.5Y RC Reverse Circulation Shrouds
PDF Download
| RC3.5 Reverse Circulation Shrouds | |||||
 | Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 100 | 3 15/16 | 0.7 | RC3.5-SHROUD-100/98-DB | 40-035-315 | |
| 102 | 4 | 0.8 | RC3.5-SHROUD-102/100-DB | - | |
| 104 | 4 1/8 | 0.8 | RC3.5-SHROUD-104/102-DB | - | |
| 108 | 4 1/4 | 0.9 | RC3.5-SHROUD-108/106F | - | |
| 114 | 4 1/2 | 0.9 | RC3.5-SHROUD-114/112-DB | - | |
BD 004 RC Reverse Circulation Shrouds
PDF Download
| BD004 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 112 | 4 13/32 | 0.9 | BD004-SHROUD-112/110-DB | 40-004-407 | |
| 115 | 4 1/2 | 0.9 | BD004-SHROUD-115/113-DB | 40-004-408 | |
| 118 | 4 5/8 | 0.9 | BD004-SHROUD-118/116-DB | 40-004-410 | |
| 121 | 4 1/4 | 1.0 | BD004-SHROUD-121/119-DB | 40-004-412 | |
| 124 | 4 7/8 | 1.0 | BD004-SHROUD-124/122-DB | 40-004-414 | |
BD 542 RC Reverse Circulation Shrouds
PDF Download
| BD542 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 121 | 4 3/4 | 1.0 | BD543/542-SHROUD-121/119-DB | 40-542-411 | |
| 124 | 4 7/8 | 1.0 | BD543/542-SHROUD-124/122-DB | 40-542-413 | |
| 127 | 5 | 1.1 | BD543/542-SHROUD-127/125-DB | 40-542-415 | |
| 130 | 5 1/8 | 1.1 | BD543/542-SHROUD-130/128-DB | 40-542-501 | |
| 133 | 5 1/4 | 1.1 | BD543/542-SHROUD-133/131-DB | 40-542-503 | |
BD 543 RC Reverse Circulation Shrouds
PDF Download
| BD543 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 121 | 4 3/4 | 1.0 | BD543/542-SHROUD-121/119-DB | 40-542-411 | |
| 124 | 4 7/8 | 1.0 | BD543/542-SHROUD-124/122-DB | 40-542-413 | |
| 127 | 5 | 1.1 | BD543/542-SHROUD-127/125-DB | 40-542-415 | |
| 130 | 5 1/8 | 1.1 | BD543/542-SHROUD-130/128-DB | 40-542-501 | |
| 133 | 5 1/4 | 1.1 | BD543/542-SHROUD-133/131-DB | 40-542-503 | |
BD 545 RC Reverse Circulation Shrouds
PDF Download
| BD545 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 124 | 4 7/8 | 1.1 | BD545-SHROUD-124/122 | 40-545-413 | |
| 127 | 5 | 1.1 | BD545-SHROUD-127/125-DB | 40-545-415 | |
| 133 | 5 1/4 | 1.2 | BD545-SHROUD-133/131-DB | 40-545-503 | |
| 136 | 5 11/32 | 1.2 | BD545-SHROUD-136/134-DB | 40-545-505 | |
| 138 | 5 7/16 | 1.2 | BD545-SHROUD-138/136-DB | 40-545-507 | |
| 140 | 5 1/2 | 1.3 | BD545-SHROUD-140/138-DB | 40-545-508 | |
BD 547 RC Reverse Circulation Shrouds
PDF Download
| BD547 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 133 | 5 1/4 | 1.2 | BD547-SHROUD-133/130.5-DB | 40-547-503 | |
| 136 | 5 11/32 | 1.2 | BD547-SHROUD-136/133.5-DB | 40-547-505 | |
| 140 | 5 1/2 | 1.3 | BD547-SHROUD-140/137.5-DB | 40-547-507 | |
| 143 | 5 5/8 | 1.3 | BD547-SHROUD-143/140.5/DB | 40-547-509 | |
| 146 | 5 3/4 | 1.3 | BD547-SHROUD-146/143.5-DB | 40-547-511 | |
BD 040 RC Reverse Circulation Shrouds
PDF Download
| BD040 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 124 | 4 7/8 | 1.1 | BD040-SHROUD-124/121.5-DB | 40-040-413 | |
| 127 | 5 | 1.1 | BD040-SHROUD-127/124.5-DB | 40-040-415 | |
| 133 | 5 1/4 | 1.2 | BD040-SHROUD-133/130.5-DB | 40-040-503 | |
| 140 | 5 1/2 | 1.2 | BD040-SHROUD-140/137.5-DB | 40-040-507 | |
| 152 | 6 | 1.2 | BD040-SHROUD-152/149.5-DB | - | |
BD 52 RC Reverse Circulation Shrouds
PDF Download
| BD52 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 133 | 5 1/4 | 1.2 | BD52-SHROUD-133/130.5-DB | 40-052-503 | |
| 136 | 5 11/32 | 1.2 | BD52-SHROUD-136/133.5-DB | 40-052-505 | |
| 140 | 5 1/2 | 1.3 | BD52-SHROUD-140/137.5-DB | 40-052-507 | |
| 143 | 5 5/8 | 1.3 | BD52-SHROUD-143/140.5-DB | 40-052-509 | |
| 165 | 6 1/2 | 1.4 | BD52-SHROUD-165/162.5-DB | 40-052-607 | |
BD 54 RC Reverse Circulation Shrouds
PDF Download
| BD54 Reverse Circulation Shrouds | |||||
| Shroud Diameter | Weight, Kg | Part Number | Compatibility | |
| mm | Inch | ||||
| 136 | 5 5/16 | 1.2 | BD54-SHROUD-136/133.5-DB | 40-054-505 | |
| 140 | 5 1/2 | 1.2 | BD54-SHROUD-140/137.5-DB | 40-054-507 | |
| 143 | 5 5/8 | 1.3 | BD54-SHROUD-143/140.5/DB | 40-054-509 | |
| 146 | 5 3/4 | 1.3 | BD54-SHROUD-146/143.5-DB | 40-054-511 | |
| 165 | 6 1/2 | 1.4 | BD54-SHROUD-165/163.5 | 40-054-607 | |
Reverse Circulation Drill String
RC Reverse Circulation Drill String Info
RC Reverse Circulation Remet Drill String Information
RC Reverse Circulation Metzke Drill String Information
RC Reverse Circulation Constant Hammer Shank 543-4M Rattler Bit
Download PDF
Constant Hammer Shank - Model 543-4M
Constant Hammer shanks or 'Rattler Bits' are used in a hammer in place of a standard drill bit and allow the piston to continuously cycle when the air is turned on.
They are typically used when a hammer and drill string is too bogged to rattle the drill string.
