Down the Hole DTH Drill Pipes and Adaptors

PDF Download: DTH Drill Pipes
& Adaptors

Key features of a high quality BDDrill DTH pipe are durability, accuracy and manageability.

BDDrill Drill Pipe is a thin-walled, hollow, steel and aluminum alloy piping which is used for drilling and on drilling rigs to facilitate the drilling of a borehole. It comes in a series of sizes, weights and strengths but it is generally 4 to 35 feet long. It is hollow internally which allows the drilling fluids to be pumped through it.

Black Diamond drill pipes are made from cold drawn piping, providing a superior surface finish and tolerance compared to conventional pipes made from hot rolled piping. This drastically reduces the risk of scaling from the pipes entering the hammer, a major cause of premature hammer failure.

Black Diamond Drilling Down the Hole-DTH Drill Pipes Specifications

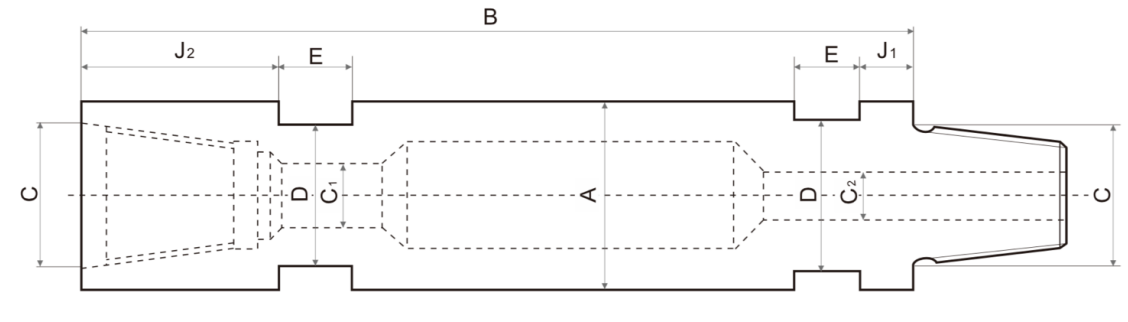

Black Diamond Drilling DTH Down the Hole Drill Pipe Schematic

DTH Drill Pipes - NO wrench flat

Part Number	Diameter (A)		Thread Pin/Box (C)	Wall thickness		Length (B)		Wrench flats (E)	Weight		Compatibility
Part Number	inch	mm	Thread Pin/Box (C)	inch	mm	feet	m	Wrench flats (E)	lbs	kg	Compatibility
ROD-DTH-76/6000-REG238	3	76	2 3/8" API REG	0.248	6,3	19.68	6	No Wrench flats	145	66	89000871
ROD-DTH-76/5000-REG238	3	76	2 3/8" API REG	0.248	6,3	16.4	5	No Wrench flats	128	58	89000444
ROD-DTH-76/4000-REG238	3	76	2 3/8" API REG	0.248	6,3	13.12	4	No Wrench flats	106	48	89009398
ROD-DTH-89/6000-REG238	3.5	89	2 3/8" API REG	0.346	8,8	19.68	6	No Wrench flats	279	127	89000999
ROD-DTH-89/6000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	19.68	6	No Wrench flats	183	83	89009356
ROD-DTH-89/5000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	16.4	5	No Wrench flats	165	75	89000442
ROD-DTH-89/4000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	13.12	4	No Wrench flats	132	60	89000445
ROD-DTH-102/6000-REG278	4	102	2 7/8" API REG	0.248	6,3	19.68	6	No Wrench flats	232	105,3	89000698
ROD-DTH-102/5000-REG278	4	102	2 7/8" API REG	0.248	6,3	16.4	5	No Wrench flats	197	89,6	89000681
ROD-DTH-102/4000-REG278	4	102	2 7/8" API REG	0.248	6,3	13.12	4	No Wrench flats	152	69	89000648
ROD-DTH-114/6000-REG312	4.5	114	3½" API REG	0.346	8,8	19.68	6	No Wrench flats	350	159	89000950
ROD-DTH-114/6000-REG312	4.5	114	3½" API REG	0.248	6,3	19.68	6	No Wrench flats	254	115,3	89009355
ROD-DTH-114/5000-REG312	4.5	114	3½" API REG	0.248	6,3	16.4	5	No Wrench flats	239	108,5	89001303
ROD-DTH-140/6000-REG412	5.5	140	4½" API REG	0.346	8,8	19.68	6	No Wrench flats	441	200,5	89000982
ROD-DTH-140/5000-REG412	5.5	140	4½" API REG	0.346	8,8	16.4	5	No Wrench flats	381	173,4	89001415

DTH Drill Pipes - with wrench flats

Part Number	Diameter (A)		Thread Pin/Box (C)	Wall thickness		Length (B)		Wrench flats (E)			Weight		Compatibility
Part Number	inch	mm	Thread Pin/Box (C)	inch	mm	feet	m	inch	mm	Location	lbs	kg	Compatibility
ROD-DTH-51/1000-RD406	2	51	RD 40-6	0.2	5	3.3	1,0	1.61	41	Both ends	15.9	7,2	89010255
ROD-DTH-51/1500-RD406	2	51	RD 40-6	0.2	5	4.9	1,5	1.61	41	Both ends	23.1	10,5	89010253
ROD-DTH-51/3000-RD406	2	51	RD 40-6	0.2	5	9.8	3,0	1.61	41	Both ends	39.7	18,0	89010251
ROD-DTH-63/1000-RD506	2.5	63	RD 50-6	0.2	5	3.3	1,0	1.97	50	Both ends	16.5	7,5	89010256
ROD-DTH-63/1500-RD506	2.5	63	RD 50-6	0.2	5	4.9	1,5	1.97	50	Both ends	24.3	11,0	89010254
ROD-DTH-63/3000-RD506	2.5	63	RD 50-6	0.2	5	9.8	3,0	1.97	50	Both ends	52.9	24,0	89010252
ROD-DTH-70/1200-RD506	2.75	70	RD 50-6	0.16	4	3.9	1,2	2.16	55	Both ends	23.1	10,5	89001311
ROD-DTH-70/1500-RD506	2.75	70	RD 50-6	0.16	4	4.9	1,5	2.16	55	Both ends	28	12,7	89009166
ROD-DTH-70/3000-RD506	2..75	70	RD 50-6	0.157	4,0	9.8	3	2.16	55	Both ends	51	23,2	89009467
ROD-DTH-76/6000-REG238	3	76	2 3/8" API REG	0.248	6,3	20	6,09	2.55	65	Both ends	158	72	89001335
ROD-DTH-76/3000-REG238	3	76	2 3/8" API REG	0.248	6,3	9.8	3	2.55	65	Both ends	79	36	89009348
ROD-DTH-76/3000-REG238	3	76	2 3/8" API REG	0.157	4,0	9.8	3	2.55	65	Both ends	55	25	89009470
ROD-DTH-76/3000-REG238	3	76	2 3/8" API REG	0.157	4,0	9.8	3	2.55	65	Both ends	53	24	89010061
ROD-DTH-76/2000-REG238	3	76	2 3/8" API REG	0.248	6,3	6.6	2	2.55	65	Both ends	55	25	89009347
ROD-DTH-76/2000-REG238	3	76	2 3/8" API REG	0.157	4,0	6.6	2	2.55	65	Both ends	40	18	89009489
ROD-DTH-76/1500-REG238	3	76	2 3/8" API REG	0.248	6,3	4.9	1,5	2.55	65	Both ends	44	20	89009346
ROD-DTH-76/1500-REG238	3	76	2 3/8" API REG	0.157	4,0	4.9	1,5	2.55	65	Both ends	33	15	89009468
ROD-DTH-76/1000-REG238	3	76	2 3/8" API REG	0.248	6,3	3.3	1	2.55	65	Both ends	31	14	89009345
ROD-DTH-76/1000-REG238	3	76	2 3/8" API REG	0.157	4,0	3.3	1	2.55	65	Both ends	24	11	89009469
ROD-DTH-76/3000-RD50	3	76	RD 50-6	0.157	4,0	9.8	3	2.55	65	Both ends	57	26	89009176
ROD-DTH-89/3000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	9.8	3	2.55	65	Both ends	95	43	89009473
ROD-DTH-89/3000-REG238	3.5	89	2 3/8" API REG	0.157	4,0	9.8	3	2.55	65	Both ends	68	31	89009472
ROD-DTH-89/2000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	6.6	2	2.55	65	Both ends	66	30	89009210
ROD-DTH-89/2000-REG238	3.5	89	2 3/8" API REG	0.157	4,0	6.6	2	2.55	65	Both ends	51	23	89009490
ROD-DTH-89/1800-REG238	3.5	89	2 3/8" API REG	0.248	6,3	6	1,8	2.55	65	Both ends	62	28	89009448
ROD-DTH-89/1500-REG238	3.5	89	2 3/8" API REG	0.248	6,3	4.9	1,5	2.55	65	Both ends	53	24	89009479
ROD-DTH-89/1500-REG238	3.5	89	2 3/8" API REG	0.157	4,0	4.9	1,5	2.55	65	Both ends	40	18	89009471
ROD-DTH-89/1000-REG238	3.5	89	2 3/8" API REG	0.248	6,3	3.3	1	2.55	65	Both ends	37	17	89009209
ROD-DTH-89/1000-REG238	3.5	89	2 3/8" API REG	0.157	4,0	3.3	1	2.55	65	Both ends	31	14	89009194
ROD-DTH-89/1800-LT275	3.5	89	LT 275	0.248	6,3	6	1,8	2.55	65	Both ends	62	28	89000798
ROD-DTH-89/6000-IF238	3.5	89	2 3/8" API IF	0.248	6,3	19.68	6	2.55	65	Both ends	180	82	89009216
ROD-DTH-89/3000-IF238	3.5	89	2 3/8" API IF	0.248	6,3	9.8	3	2.55	65	Both ends	95	43	89009214
ROD-DTH-102/3000-REG278	4	102	2 7/8" API REG	0.248	6,3	9.8	3	3	75	Both ends	114	52	89009423
ROD-DTH-114/6000-REG312	4.5	114	3½" API REG	0.346	8,8	19.68	6	3.74	95	Both ends	295	134	89009370
ROD-DTH-114/6000-REG312	4.5	114	3½" API REG	0.248	6,3	19.68	6	3.74	95	Both ends	244	111	89009477
ROD-DTH-114/5000-REG312	4.5	114	3½" API REG	0.248	6,3	16.4	5	3.74	95	Both ends	198	90	89000994
ROD-DTH-114/3000-REG312	4.5	114	3½" API REG	0,.248	6,3	9.8	3	3.74	95	Both ends	132	60	89009476
ROD-DTH-114/3000-REG312	4.5	114	3½" API REG	0.157	4,0	9.8	3	3.74	95	Both ends	101	46	89009446
ROD-DTH-114/2000-REG312	4.5	114	3½" API REG	0.248	6,3	6.6	2	3.74	95	Both ends	97	44	89009230
ROD-DTH-114/1500-REG312	4.5	114	3½" API REG	0.248	6,3	4.9	1,5	3.74	95	Both ends	77	35	89009475
ROD-DTH-114/1000-REG312	4.5	114	3½" API REG	0.248	6,3	3.3	1	3.74	95	Both ends	59	27	89009229
ROD-DTH-114/1500-LT425	5.25	133	LT 425	0,197	5,0	4.9	1,5			Both ends	73	33	89000954
ROD-DTH-114/3000-REG412	5.5	140	4½" API REG	0,346	8,8	9.8	3	4.5	114	Both ends	224	102	89009536

Black Diamond Drilling Down the Hole-DTH adaptors Specifications

Black Diamond Drilling DTH Down the Hole Adaptors Schematics

DTH Box to Box adaptors - Female to Female

Product code	Diameter (D1, D2)		Length ss (C)		Configuration			Flats Across (F)		Weight		Compatibility
Product code	inch	mm	inch	mm	Type	Box (A)	Box (B)	inch	mm	lbs	kg	Compatibility
SUB-BREG238BRD506-76/SSL140	3	76	5.5	140	Box/Box	2 3/8" API Reg	RD 50-6	2.56	65	9	4	89009257
SUB-BREG238BREG238-76/SSL200	3	76	7.9	200	Box/Box	2 3/8" API Reg	2 3/8" API Reg	2.56	65	10	4.5	89009261
SUB-BREG238BREG238-89/SSL200	3.5	89	7.9	200	Box/Box	2 3/8" API Reg	2 3/8" API Reg	2.56	65	13	6	89009482
SUB-BREG238BIF238-89/SSL508	3.5	89	20	508	Box/Box	2 3/8" API Reg	2 3/8" IF	2.75	70	37	17	58135732
SUB-BRD70BREG312-114/SSL178	4.5	114	7	178	Box/Box	RD 70-4	3 1/2" API Reg	3.75	95	18	8	89009259
SUB-BREG278BREG312-114/SSL254	4.5	114	10	254	Box/Box	2 7/8" API Reg	3 1/2" API Reg	4	102	22	10	56934789
SUB-BREG238BREG312-114/SSL210	4.5	114	8.25	210	Box/Box	2 3/8" API Reg	3 1/2" API Reg	3.75	95	22	10	89009483
SUB-BREG312BREG312-121/SSL305	4.75	121	12	305	Box/Box	3 1/2" API Reg	3 1/2" API Reg	4	102	40	18	56930563
SUB-BREG412BREG412-140/SSL305	5.5	140	12	305	Box/Box	4 1/2" API Reg	4 1/2" API Reg	5	127	51	23	57730756
SUB-BREG412BIF278-140/SSL610	5.5	140	24	610	Box/Box	4 1/2" API Reg	2 7/8" IF	No	No	64	29	58135856

DTH Box to Pin adaptors - Female to Male

Product code	Diameter (D1, D2)		Length ss (C)		Configuration			Flats Across (F)		Weight		Compatibility
Product code	inch	mm	inch	mm	Type	Box (A)	Pin (B)	inch	mm	lbs	kg	Compatibility
SUB-BRD406PRD506-62/SSL99	2.5	62	3.9	99	Box/Pin	RD 40-6	RD 50-6	2.56	65	6.6	3,0	89010257
SUB-BREG238PZ2-76/SSL300	3	76	11.81	300	Box/Pin	2 3/8" API Reg	2" Z	2.62	67	15	7	51862506
SUB-BREG238PRD506-76/SSL145	3	76	5.72	145	Box/Pin	2 3/8" API Reg	RD 50-6	2.56	65	9	4	89009286
SUB-BREG238PREG238-76/SSL140	3	76	5.5	140	Box/Pin	2 3/8" API Reg	2 3/8" API Reg	2.56	65	9	4	89009288
SUB-BREG238PIF312-89/SSL356	3.5	89	14	356	Box/Pin	2 3/8" API Reg	3 1/2" IF	2.5	64	46	21	56938665
SUB-BREG238PREG238-89/SSL140	3.5	89	5.5	140	Box/Pin	2 3/8" API Reg	2 3/8" API Reg	2.56	65	13	6	89009496
SUB-BREG238PREG278-95/SSL130	3.75	95	5.13	130	Box/Pin	2 3/8" API Reg	2 7/8" API Reg	2.56	65	18	8	89009492
SUB-BREG238PREG238-102/SSL130	4	102	5.13	130	Box/Pin	2 3/8" API Reg	2 3/8" API Reg	3	76	17	7,8	89009097
SUB-BREG238PREG312-114/SSL120	4.5	114	4.72	120	Box/Pin	2 3/8" API Reg	3 1/2" API Reg	3.75	95	19	8,5	89009491
SUB-BREG278PREG238-189/SSL152	3.5	89	6	152	Box/Pin	2 7/8" API Reg	2 3/8" API Reg	2.56	65	14	6,5	89009011
SUB-BREG238PREG238-102/SSL229	4	102	9	229	Box/Pin	2 7/8" API Reg	2 7/8" API Reg	3.5	89	24	11	57155921
SUB-BREG238PIF312-102/SSL356	4	102	14	356	Box/Pin	2 7/8" API Reg	3 1/2" IF	3	76	55	25	56996317
SUB-BREG278PIF4-146/SSL483	5.75	146	19	483	Box/Pin	2 7/8" API Reg	4"IF	3.5	89	73	33	57085425
SUB-BREG278PIF4-152/SSL483	6	152	19	483	Box/Pin	2 7/8" API Reg	4"IF	3.5	89	123	56	57093163
SUB-BIF278PFH4-127/SSL483	5	127	19	483	Box/Pin	2 7/8" IF	4" FH	3.5	89	79	36	52215464
SUB-BIF278PFH4-127/SSL1067	5	127	42	1067	Box/Pin	2 7/8" IF	4" FH	3.5	89	183	83	57048514
SUB-BIF278PFH4-127/SSL1372	5	127	54	1372	Box/Pin	2 7/8" IF	4" FH	3.5	89	236	107	57233149
SUB-BIF278PFH4-140/SSL241	5.5	140	9.5	241	Box/Pin	2 7/8" IF	4" FH	3.5	89	53	24	57620544
SUB-BREG312PZ212-102/SSL340	4	102	13.38	340	Box/Pin	3 1/2" API Reg	2 1/2" Z	3	76	24	11	51788644
SUB-BREG312PREG278-102/SSL305	4	102	12	305	Box/Pin	3 1/2" API Reg	2 7/8" API Reg	3	76	32	14,5	56996663
SUB-BREG312PREG278-102/SSL229	4	102	9	229	Box/Pin	3 1/2" API Reg	2 7/8" API Reg	3.5	89	24	11	57155913
SUB-BREG312PREG238-114/SSL219	4.5	114	8.62	219	Box/Pin	3 1/2" API Reg	2 3/8" API Reg	3.75	95	27.5	12,5	89009495
SUB-BREG312PREG238-114/SSL299	4.5	114	11.75	299	Box/Pin	3 1/2" API Reg	2 3/8" API Reg	3.75	95	35.7	16,2	89000860
SUB-BREG312PZ2-114/SSL254	4.5	114	10	254	Box/Pin	3 1/2" API Reg	2" Z	3.5	89	22	10	51031318
SUB-BREG312PREG278-114/SSL160	4.5	114	6.29	160	Box/Pin	3 1/2" API Reg	2 7/8" API Reg	3.75	95	16	7,5	89009051
SUB-BREG312PIF278-114/SSL160	4.5	114	6.29	160	Box/Pin	3 1/2" API Reg	2 7/8" IF	3.75	95	18	8	89009053
SUB-BREG312PREG312-114/SSL160	4.5	114	6.29	160	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.75	95	18	8	89009494
SUB-BREG312PNC35-114/SSL160	4.5	114	6.29	160	Box/Pin	3 1/2" API Reg	API NC 35	3.75	95	22	10	89009052
SUB-BREG312PREG312-114/SSL229	4.5	114	9	229	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.5	89	22	10	57155947
SUB-BREG312PREG312-114/SSL965	4.5	114	38	965	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.5	89	141	64	57762940
SUB-BREG312PREG312-127/SSL299	5	127	9	229	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.5	89	44	20	57187114
SUB-BREG312PREG312-127/SSL607	5	127	24	607	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.5	89	134	61	57194078
SUB-BREG312PREG312-127/SSL914	5	127	36	914	Box/Pin	3 1/2" API Reg	3 1/2" API Reg	3.5	89	159	72	57194086
SUB-BREG312PBECO312-127/SSL299	5	127	9	229	Box/Pin	3 1/2" API Reg	3 1/2" BECO	3.5	89	44	20	57236895
SUB-BREG312PFH4-127/SSL483	5	127	19	483	Box/Pin	3 1/2" API Reg	4" FH	3.5	89	57	26	50217504
SUB-BREG312PFH4-127/SSL419	5	127	16.5	419	Box/Pin	3 1/2" API Reg	4" FH	3.5	89	55	25	52156734
SUB-BREG312PBECO312-140/SSL813	5.5	140	32	813	Box/Pin	3 1/2" API Reg	3 1/2" BECO	4.5	114	189	86	52249463
SUB-BREG312PREG412-146/SSL131	5.75	146	5.16	131	Box/Pin	3 1/2" API Reg	4 1/2" API Reg	4.71	120	36	16,5	89009099
SUB-BREG312PIF4-152/SSL483	6	152	19	483	Box/Pin	3 1/2" API Reg	4" IF	3.5	89	112	51	57032872
SUB-BBECO312PFH4-140/SSL483	5.5	140	19	483	Box/Pin	3 1/2" BECO	4" FH	4.5	114	73	33	52206992
SUB-BBECO312PIF4-152/SSL483	6	152	19	483	Box/Pin	3 1/2" BECO	4" IF	3.5	89	108	49	57294845
SUB-BBECO4PIF4-152/SSL483	6	152	19	483	Box/Pin	4" BECO	4" IF	4.5	114	121	55	57032955
SUB-BFH4PIF278-140/SSL607	5.5	140	24	607	Box/Pin	4" FH	2 7/8" IF	3.5	89	81	37	52215456
SUB-BREG412PREG312-114/SSL607	4.5	114	24	607	Box/Pin	4 1/2" API Reg	3 1/2" API Reg	3.5	89	79	36	50346881
SUB-BREG412PREG312-140/SSL229	5.5	140	9	229	Box/Pin	4 1/2" API Reg	3 1/2" API Reg	4.5	114	46	21	57142069
SUB-BREG412PBECO312-140/SSL914	5.5	140	36	914	Box/Pin	4 1/2" API Reg	3 1/2" BECO	4.5	114	216	98	57678625
SUB-BREG412PBECO312-140/SSL229	5.5	140	9	229	Box/Pin	4 1/2" API Reg	3 1/2" BECO	4.5	114	46	21	52206984
SUB-BREG412PBECO312-140/SSL607	5.5	140	24	607	Box/Pin	4 1/2" API Reg	3 1/2" BECO	4.5	114	139	63	57338477
SUB-BREG412PREG312-146/SSL235	5.75	146	9.25	235	Box/Pin	4 1/2" API Reg	3 1/2" API Reg	3.75	95	42	19	89009588

DTH Box to Pin adaptors - Female to Male - NO spanner flats

Product code	Diameter (D1, D2)		Length ss (C)		Configuration			Flats Across (F)		Weight		Compatibility
Product code	inch	mm	inch	mm	Type	Box (A)	Pin (B)	inch	mm	lbs	kg	Compatibility
SUB-BREG238PREG238-89/SSL305	3.5	89	12	305	Box/Pin	2 3/8” API Reg	2 3/8” API Reg	n/a	n/a	28.6	13	89000644
SUB-BREG278PREG238-102/SSL305	4	102	12	305	Box/Pin	2 7/8” API Reg	2 3/8” API Reg	n/a	n/a	35.2	16	89000655
SUB-BREG312PREG312-114/SSL305	4.5	114	12	305	Box/Pin	3 1/2” API Reg	3 1/2” API Reg	n/a	n/a	46.2	21	89000702
SUB-BREG312PREG278-114/SSL305	4.5	114	12	305	Box/Pin	3 1/2” API Reg	2 7/8” API Reg	n/a	n/a	46.2	21	89000854
SUB-BREG312PREG312-127/SSL305	5	127	12	305	Box/Pin	3½” API Reg	3½” API Reg	n/a	n/a	60.1	27,3	89001339

DTH Box to Pin adaptors - Female to Male - with spanner flats

Product code	Diameter (D1, D2)		Length ss (C)		Configuration			Flats Across (F)		Weight		Compatibility
Product code	inch	mm	inch	mm	Type	Box (A)	Pin (B)	inch	mm	lbs	kg	Compatibility
SUB-BREG238PREG238-76/SSL220	3	76	8.66	220	Box/Pin	2 3/8” API Reg	2 3/8” API Reg	2.56	65	14.7	6,7	89001326
SUB-BREG238PREG238-76/SSL580	3	76	22.83	580	Box/Pin	2 3/8” API Reg	2 3/8” API Reg	2.56	65	38.8	6,7	89001315
SUB-BREG238PREG238-89/SSL220	3.5	89	8.66	220	Box/Pin	2 3/8” API Reg	2 3/8” API Reg	2.56	65	20.5	9,3	89001327
SUB-BREG238PREG238-89/SSL580	3.5	89	22.83	580	Box/Pin	2 3/8” API Reg	2 3/8” API Reg	2.56	65	53.3	25,1	89001322
SUB-BREG278PREG238-102/SSL220	4	102	8.66	220	Box/Pin	2 7/8” API Reg	2 3/8” API Reg	2.95	75	26	11,8	89001328
SUB-BREG278PREG238102/SSL580	4	102	22.83	580	Box/Pin	2 7/8” API Reg	2 3/8” API Reg	2.95	75	72.5	32,9	89001323
SUB-BREG278PREG312-102/SSL220	4	102	8.66	220	Box/Pin	2 7/8” API Reg	3 1/2” API Reg	2.95	75	27.3	12,4	89001331
SUB-BREG278PREG312-102/SSL580	4	102	22.83	580	Box/Pin	2 7/8” API Reg	3 1/2” API Reg	2.95	75	69.4	31,5	89001325
SUB-BREG312PREG312-114/SSL220	4.5	114	8.66	220	Box/Pin	3 1/2” API Reg	3 1/2” API Reg	3.74	95	33.5	15,2	89001329
SUB-BREG312PREG312-114/SSL580	4.5	114	22.83	580	Box/Pin	3 1/2” API Reg	3 1/2” API Reg	3.74	95	89	40,4	89001320
SUB-BREG412PREG312-140/SSL220	5.5	140	8.66	220	Box/Pin	4 1/2” API Reg	3 1/2” API Reg	4.72	120	44	20	89001330
SUB-BREG412PREG312-140/SSL580	5.5	140	22.83	580	Box/Pin	4 1/2” API Reg	3 1/2” API Reg	4.72	120	131	59,4	89001324

DTH Pin to Pin adaptors - Male to Male

Product code	Diameter (D1, D2)		Length ss (C)		Configuration			Flats Across (F)		Weight		Compatibility
Product code	inch	mm	inch	mm	Type	Box (A)	Pin (B)	inch	mm	lbs	kg	Compatibility
SUB-PRD506PREG238-76/SSL60	3	76	2.33	60	Pin/Pin	RD 50-6	2 3/8" API Reg	2.63	65	6.6	3	89009270
SUB-PRD506PREG238-76/SSL60	3	76	0.26	0,08	Pin/Pin	2 3/8 API Reg	RD 40-6	2.56	65	7.7	3,5	89010258
SUB-PRD506PREG238-76/SSL60	3.5	89	2.75	70	Pin/Pin	RD 70-4	2 3/8" API Reg	2.63	65	10	4,6	89009272
SUB-PRD506PREG238-76/SSL60	3.5	89	2.75	70	Pin/Pin	2 3/8" API Reg	2 3/8" API Reg	2.63	65	10	4,6	89009498
SUB-PRD506PREG238-76/SSL60	3.69	94	4	102	Pin/Pin	2 3/8" API Reg	2 3/8" API Reg	2.25	57	11	5	50984616
SUB-PRD506PREG238-76/SSL60	4.75	121	19.5	495	Pin/Pin	2 3/8" IF	3 1/2" IF			62	28	58040361
SUB-PRD506PREG238-76/SSL60	4.75	121	19.5	495	Pin/Pin	2 3/8" IF	3 1/2" IF			81	37	58036625
SUB-PRD506PREG238-76/SSL60	5	127	38	970	Pin/Pin	4" FH	3 1/2" IF	3.5	89	200	91	57611360

Rig Specific Down the Hole-DTH Drill Pipes Specifications

Driltech Gator

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	9 1/2	2896	2 3/8" API	2 3/8" API	Driltech/ GATOR	92	42
3	76	1/4	6.3	13	3962	2 3/8" API	2 3/8" API	Driltech/ GATOR	119	54
3	76	1/2	12.7	25	7650	2 3/8" API	2 3/8" API	Driltech/ GATOR	339	154
3 1/2	89	11/32	8.8	9 1/2	2896	2 3/8" API	2 3/8" API	Driltech/ GATOR	139	63
3 1/2	89	11/32	8.8	9 1/2	2896	2 7/8" API	2 7/8" API	Driltech/ GATOR	136	62
3 1/2	89	11/32	8.8	13	3962	2 7/8" API	2 7/8" API	Driltech/ GATOR	174	79
3 1/2	89	11/32	8.8	13	3962	2 3/8" API	2 3/8" API	Driltech/ GATOR	176	80
3 1/2	89	11/32	8.8	20	6096	2 3/8"IF	2 3/8"IF	Driltech/ GATOR	238	108
3 1/2	89	1/2	12.7	25	7650	2 3/8" API	2 3/8" API	Driltech/ GATOR	422	192
3 1/2	89	11/32	8.8	9 1/2	2896	2 7/8" API	2 7/8" API	Driltech/ GATOR	176	80
4	102	11/32	8.8	13	3962	2 3/8"IF	2 3/8"IF	Driltech/ GATOR	218	99
4	102	11/32	8.8	13	3962	2 7/8" API	2 7/8" API	Driltech/ GATOR	222	101
4 1/2	114	11/32	8.8	9 1/2	2896	3 1/2" API	3 1/2" API	Driltech/ GATOR	225	102
4 1/2	114	11/32	8.8	13	3962	3 1/2" API	3 1/2" API	Driltech/ GATOR	280	127
4 1/2	114	1/2	12.7	25	7650	3" BECO	3" BECO	Driltech/ GATOR	591	268

Driltech T25KW D25 D40

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	11/32	8.8	19' 8 5/8"	6010	2 3/8"IF	2 3/8"IF	Driltech T25KW/D25/40	242	110
3 1/2	89	11/32	8.8	20	6096	2 3/8"IF	2 3/8"IF	Driltech T25KW/D25/40	242	110
3 1/2	89	1/2	12.7	25	7620	2 3/8" IF	2 3/8" IF	Driltech T25KW/D25/40	411	187
3 1/2	89	1/2	12.7	30	9144	2 3/8" IF	2 3/8" IF	Driltech T25KW/D25/40	491	223
4	102	11/32	8.8	19' 8 5/8"	6010	2 3/8"IF	2 3/8"IF	Driltech T25KW/D25/40	306	139
4	102	11/32	8.8	25	7620	2 7/8" API	2 7/8" API	Driltech T25KW/D25/40	383	174
4	102	1/2	12.7	25	7620	2 7/8" API	2 7/8" API	Driltech T25KW/D25/40	488	222
4	102	11/32	8.8	30	9144	2 3/8"IF	2 3/8"IF	Driltech T25KW/D25/40	444	202
4	102	1/2	12.7	30	9144	2 7/8" API	2 7/8" API	Driltech T25KW/D25/40	581	264
4	102	11/32	8.8	30	9144	2 7/8" API	2 7/8" API	Driltech T25KW/D25/40	451	205
4	102	1/2	12.7	30	9144	2 7/8" API	2 7/8" API	Driltech T25KW/D25/40	581	264
4 1/2	114	11/32	8.8	19' 8 5/8"	6000	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	343	156
4 1/2	114	11/32	8.8	19' 8 5/8"	6010	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	345	157
4 1/2	114	11/32	8.8	20	6096	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	354	161
4 1/2	114	11/32	8.8	20	6096	2 7/8" IF	2 7/8" IF	Driltech T25KW/D25/40	345	157
4 1/2	114	1/2	12.7	21' 6"	6553	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	488	222
4 1/2	114	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	431	196
4 1/2	114	11/32	8.8	25	7620	2 7/8" IF	2 7/8" IF	Driltech T25KW/D25/40	431	196
4 1/2	114	1/2	12.7	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	563	256
4 1/2	114	3/4	19	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	796	362
4 1/2	114	11/32	8.8	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	506	230
4 1/2	114	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	669	304
4 1/2	114	11/32	8.8	30	9144	3" BECO	3" BECO	Driltech T25KW/D25/40	515	234
4 1/2	114	11/32	8.8	30	9144	2 7/8" IF	2 7/8" IF	Driltech T25KW/D25/40	506	230
4 1/2	114	1/2	12.7	30	9144	3" BECO	3" BECO	Driltech T25KW/D25/40	671	305
4 1/2	114	3/4	19	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	953	433
5	127	1/2	12.7	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	693	315
5	127	3/4	19	25	7620	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	928	422
5	127	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	499	227
5	127	1/2	12.7	25	7620	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	646.8	294
5	127	3/4	19	25	7620	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	920	418
5	127	3/4	19	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	1100	500
5	127	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	774	352
5	127	11/32	8.8	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	585	266
5	127	1/2	12.7	30	9144	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	763	347
5	127	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	1104.4	502
5 1/2	140	3/4	19	25	7620	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	1045	475
5 1/2	140	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	1243	565
5 1/2	140	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Driltech T25KW/D25/40	847	385
5 1/2	140	1/2	12.7	30	9144	3 1/2" BECO	3 1/2" BECO	Driltech T25KW/D25/40	871.2	396
5 1/2	140	1/2	12.7	30	9144	4" FH	4" FH	Driltech T25KW/D25/40	862.4	392

DI Titon (BPI)

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	9' 10"	3000	2 3/8" API	2 3/8" API	DI/TITON/BPI	92	42
3	76	5/32	4	9' 10"	3000	2 3/8" API	2 3/8" API	DI/TITON/BPI	73	33
3	76	5/32	4	9' 10"	3000	2 3/8" API	2 3/8" API	DI/TITON/BPI	68	31
3	76	1/4	6.3	12' 2 3/8"	3720	2 3/8" API	2 3/8" API	DI/TITON/BPI	99	45
3	76	1/4	6.3	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	117	53
3	76	1/4	6.3	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	101	46
3	76	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	176	80
3	76	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	141	64
3	76	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	128	58
3	76	1/4	6.3	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	DI/TITON/BPI	165	75
3	76	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	DI/TITON/BPI	209	95
3 1/2	89	5/32	4	9' 10"	3000	2 3/8" API	2 3/8" API	DI/TITON/BPI	99	45
3 1/2	89	1/4	6.3	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	150	68
3 1/2	89	11/32	8.8	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	174	79
3 1/2	89	5/32	4	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	119	54
3 1/2	89	5/32	4	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	DI/TITON/BPI	101	46
3 1/2	89	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	209	95
3 1/2	89	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	180	82
3 1/2	89	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	165	75
3 1/2	89	1/4	6.3	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	DI/TITON/BPI	207	94
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	DI/TITON/BPI	240	109
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	DI/TITON/BPI	242	110
3 1/2	89	1/4	6.3	24' 7 9/32"	7500	2 3/8" API	2 3/8" API	DI/TITON/BPI	249	113
3 1/2	89	11/32	8.8	24' 7 9/32"	7500	2 3/8" API	2 3/8" API	DI/TITON/BPI	297	135
4	102	1/4	6.3	13' 1 1/2"	4000	2 7/8" API	2 7/8" API	DI/TITON/BPI	183	83
4	102	11/32	8.8	13' 1 1/2"	4000	2 7/8" API	2 7/8" API	DI/TITON/BPI	224	102
4	102	11/32	8.8	16' 4 5/8"	5000	2 7/8" API	2 7/8" API	DI/TITON/BPI	269	122
4	102	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	DI/TITON/BPI	187	85
4	102	1/4	6.3	16' 4 5/8"	5000	2 7/8" API	2 7/8" API	DI/TITON/BPI	216	98
4	102	11/32	8.8	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	DI/TITON/BPI	312	142
4	102	1/4	6.3	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	DI/TITON/BPI	246	112
4	102	1/4	6.3	24' 7 9/32"	7500	2 7/8" API	2 7/8" API	DI/TITON/BPI	295	134
4	102	11/32	8.8	24' 7 9/32"	7500	2 7/8" API	2 7/8" API	DI/TITON/BPI	378	172
4 1/2	114	1/4	6.3	13' 1 1/2"	4000	3 1/2" API	3 1/2" API	DI/TITON/BPI	213	97
4 1/2	114	11/32	8.8	13' 1 1/2"	4000	3 1/2" API	3 1/2" API	DI/TITON/BPI	260	118
4 1/2	114	1/4	6.3	13' 1 1/2"	4000	3 1/2" API	3 1/2" API	DI/TITON/BPI	167	76
4 1/2	114	11/32	8.8	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	DI/TITON/BPI	310	141
4 1/2	114	1/4	6.3	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	DI/TITON/BPI	253	115
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	DI/TITON/BPI	359	163
4 1/2	114	1/4	6.3	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	DI/TITON/BPI	288	131
4 1/2	114	1/4	6.3	24' 7 9/32"	7500	3 1/2" API	3 1/2" API	DI/TITON/BPI	343	156
4 1/2	114	11/32	8.8	24' 7 9/32"	7500	3 1/2" API	3 1/2" API	DI/TITON/BPI	436	198
5	127	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	DI/TITON/BPI	416	189
5	127	1/4	6.3	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	DI/TITON/BPI	339	154
5	127	1/4	6.3	24' 7 9/32"	7500	3 1/2" API	3 1/2" API	DI/TITON/BPI	398	181
5	127	11/32	8.8	24' 7 9/32"	7500	3 1/2" API	3 1/2" API	DI/TITON/BPI	502	228
5	127	11/32	8.8	24' 7 9/32"	7500	3 1/2" BECO	3 1/2" BECO	DI/TITON/BPI	502	228
5	127	1/2	12.7	24' 7 9/32"	7500	3 1/2" BECO	3 1/2" BECO	DI/TITON/BPI	647	294
5 1/2	140	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	DI/TITON/BPI	365	166
5 1/2	140	11/32	8.8	24' 7 9/32"	7500	4 1/2" API	4 1/2" API	DI/TITON/BPI	561	255
5 1/2	140	11/32	8.8	24' 7 9/32"	7500	3 1/2" BECO	3 1/2" BECO	DI/TITON/BPI	561	255
5 1/2	140	1/2	12.7	24' 7 9/32"	7500	3 1/2" BECO	3 1/2" BECO	DI/TITON/BPI	748	340

'S' Brand Cubex Spline

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	6	1828	CUBEX #19	CUBEX #19	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3	76	1/4	6.3	10	3048	CUBEX #19	CUBEX #19	Sandvik Cubex/UG/V-30/QXR (Splines)	81	37
3 7/64	79	1/4	6.3	4	1219	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	37	17
3 7/64	79	1/4	6.3	5	1524	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 7/64	79	1/4	6.3	6	1829	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3 1/2	89	1/4	6.3	4	1219	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 1/2	89	1/4	6.3	4	1219	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 1/2	89	1/4	6.3	5	1524	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	55	25
3 1/2	89	1/4	6.3	5	1524	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3 1/2	89	1/4	6.3	6	1829	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	64	29
3 1/2	89	1/4	6.3	6	1829	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	62	28
4	102	1/4	6.3	4	1219	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	60	27
4	102	1/4	6.3	5	1524	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4	102	1/4	6.3	6	1828	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	79	36
4	102	1/2	12.7	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	311	141
4	102	11/32	8.8	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	287	130
4	102	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	384	174
4 1/2	114	1/4	6.3	3' 11"	1196	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4 1/2	114	1/4	6.3	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4 1/2	114	1/4	6.3	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	79	36
4 1/2	114	1/4	6.3	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	90	41
4 1/2	114	1/2	12.7	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	359	163
4 1/2	114	1/2	12.7	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	445	202
4 1/2	114	11/32	8.8	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	344	156
5	127	1/2	12.7	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	112	51
5	127	1/4	6.3	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	93	42
5	127	1/4	6.3	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	106	48
5	127	11/32	8.8	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	123	56
5	127	25/64	10	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	132	60
5	127	1/4	6.3	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	117	53
5	127	11/32	8.8	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	141	64
5	127	1/2	12.7	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	410	186
5	127	1/2	12.7	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	505	229

'S' Brand Cubex QXR (No Spline)

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	3/4	19	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	370	168
3 1/2	89	3/4	19	16	4877	2 3/8" API	2 3/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	367	167
3 1/2	89	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	198	90
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	233	106
3 1/2	89	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	330	150
3 1/2	89	1/2	12.7	20	6096	2 3/8" API	2 3/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	330	150
3 1/2	89	11/32	8.8	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
3 1/2	89	11/32	8.8	20	6096	2 3/8" API	2 3/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
4	102	3/4	19	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	444	202
4	102	1/2	12.7	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	316	144
4	102	11/32	8.8	16' 4 5/8"	5000	2 7/8" API	2 7/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	253	115
4	102	11/32	8.8	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	Sandvik Cubex/QXR (TJBO/No Splines)	297	135
4	102	11/32	8.8	20	6096	CUBEX #24	CUBEX #25	Sandvik Cubex/QXR (TJBO/No Splines)	301	137
4	102	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	392	178
4	102	1/4	6.3	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
4	102	3/4	19	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	552	251
4 1/2	114	3/4	19	16	4877	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	515	234
4 1/2	114	11/32	8.8	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	293	133
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	343	156
4 1/2	114	1/2	12.7	20	6096	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	453	206
5	127	1/2	12.7	16	4877	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	436	198
5	127	3/4	19	16	4877	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	627	285
5	127	11/32	8.8	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/QXR (TJBO/No Splines)	332	151
5	127	1/2	12.7	16	4877	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	438	199
5	127	11/32	8.8	19' 8 7/32"	6000	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	394	179
5	127	1/2	12.7	20	6096	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	521	237
5	127	11/32	8.8	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/QXR (TJBO/No Splines)	400	182
5	127	1/2	12.7	20	6096	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	524	238
5	127	3/4	19	20	6096	3 1/2" API	3 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	629	286
5 1/2	140	1/2	12.7	15' 9"	4800	4 1/2" API	4 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	471	214
5 1/2	140	1/2	12.7	15' 9"	4800	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	480	218
5 1/2	140	1/2	12.7	19' 8 7/32"	6000	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	583	265
5 1/2	140	11/32	8.8	19' 8 7/32"	6000	3 1/2" BECO	3 1/2" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	449	204
5 1/2	140	11/32	8.8	19' 8 7/32"	6000	4" BECO	4" BECO	Sandvik Cubex/QXR (TJBO/No Splines)	449	204
5 1/2	140	1/2	12.7	19' 8 7/32"	6000	4 1/2" API	4 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	574	261
5 1/2	140	11/32	8.8	19' 8 7/32"	6000	4 1/2" API	4 1/2" API	Sandvik Cubex/QXR (TJBO/No Splines)	446.6	203

CM695 760 780

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	8' 10 19/64"	2700	2"Z	2"Z	Atlas Copco CM 695 760 780	73	33
3	76	11/32	8.8	9' 6 11/64"	2900	2 3/8"API	2"Z	Atlas Copco CM 695 760 780	101	46
3	76	1/4	6.3	13' 1 1/2"	4000	2" Z	2" Z	Atlas Copco CM 695 760 780	99	45
3	76	0.5	12.7	13' 1 1/2"	4000	2"Z	2"Z	Atlas Copco CM 695 760 780	176	80
3	76	11/32	8.8	13' 1 1/2"	4000	2"Z	2"Z	Atlas Copco CM 695 760 780	134	61
3	76	11/32	8.8	15' 1 7/64"	4600	2 3/8"API	2"Z	Atlas Copco CM 695 760 780	156	71
3	76	1/4	6.3	16' 4 5/8"	5000	2"Z	2"Z	Atlas Copco CM 695 760 780	123	56
3 1/2	89	11/32	8.8	7' 10 1/2"	2400	3 1/2" API	2 1/2"Z	Atlas Copco CM 695 760 780	108	49
3 1/2	89	11/32	8.8	8' 10 19/64"	2700	2 3/8" API	2 1/2" Z	Atlas Copco CM 695 760 780	132	60
3 1/2	89	11/32	8.8	8' 10 19/64"	2700	2 3/8"API	2 1/2"Z	Atlas Copco CM 695 760 780	108	49
3 1/2	89	1/4	6.3	13' 1 1/2"	4000	2 1/2"Z	2 1/2"Z	Atlas Copco CM 695 760 780	125	57
3 1/2	89	11/32	8.8	14' 5 7/32"	4400	3 1/2" API	2 1/2"Z	Atlas Copco CM 695 760 780	178	81
3 1/2	89	11/32	8.8	15' 1 7/64"	4600	2 3/8" API	2 1/2" Z	Atlas Copco CM 695 760 780	176	80
3 1/2	89	1/4	6.3	16' 4 5/8"	5000	2 1/2" Z	2 1/2" Z	Atlas Copco CM 695 760 780	154	70
4	102	1/4	6.3	7' 11 5/8"	2435	2 1/2" Z	2 1/2" Z	Atlas Copco CM 695 760 780	97	44
4	102	11/32	8.8	8' 10 19/64"	2700	3 1/2" API	2 1/2" Z	Atlas Copco CM 695 760 780	143	65
4	102	1/4	6.3	13' 1 1/2"	4000	2 1/2" Z	2 1/2" Z	Atlas Copco CM 695 760 780	145	66
4	102	1/2	12.7	13' 1 1/2"	4000	3 1/2" API	2 1/2"Z	Atlas Copco CM 695 760 780	260	118
4	102	11/32	8.8	14' 5 7/32"	4400	3 1/2" API	2 1/2" Z	Atlas Copco CM 695 760 780	218	99
4	102	1/4	6.3	16' 4 5/8"	5000	2 1/2" Z	2 1/2" Z	Atlas Copco CM 695 760 780	178	81

DM30 45 50 T4 RD20

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4	102	11/32	8.8	25	7620	2 7/8" API	2 7/8" API	Atlas Copco T4/DM30/DM45	370	168
4	102	3/4	19	26' 6"	8077	2 7/8" API	2 7/8" API	Atlas Copco T4/DM30/DM45	662	301
4	102	11/32	8.8	30	9144	2 7/8" API	2 7/8" API	Atlas Copco T4/DM30/DM45	438	199
4	102	3/4	19	30	9144	2 7/8" API	2 7/8" API	Atlas Copco T4/DM30/DM45	744	338
4 1/2	114	11/32	8.8	20	6096	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	339	154
4 1/2	114	11/32	8.8	20	6096	2 7/8" IF	2 7/8" IF	Atlas Copco T4/DM30/DM45	332	151
4 1/2	114	1/2	12.7	21' 6"	6553	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	482	219
4 1/2	114	5/8	16	21' 6"	6553	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	581	264
4 1/2	114	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	411	187
4 1/2	114	1/2	12.7	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	550	250
4 1/2	114	11/32	8.8	25	7620	2 7/8" IF	2 7/8" IF	Atlas Copco T4/DM30/DM45	409	186
4 1/2	114	3/4	19	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	792	360
4 1/2	114	3/4	19	26' 6"	8077	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	838	381
4 1/2	114	3/4	19	26' 6"	8077	3" BECO	3" BECO	Atlas Copco T4/DM30/DM45	838	381
4 1/2	114	5/8	16	28	8534	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	750	341
4 1/2	114	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	656	298
4 1/2	114	3/4	19	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	942	428
4 1/2	114	11/32	8.8	30	9144	2 7/8" IF	2 7/8" IF	Atlas Copco T4/DM30/DM45	486	221
4 1/2	114	11/32	8.8	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	491	223
4 1/2	114	11/32	8.8	30	9144	3" BECO	3" BECO	Atlas Copco T4/DM30/DM45	495	225
4 1/2	114	1/2	12.7	30	9144	3" BECO	3" BECO	Atlas Copco T4/DM30/DM45	656	298
4 1/2	114	3/4	19	30	9144	3" BECO	3" BECO	Atlas Copco T4/DM30/DM45	942	428
4 1/2	114	1/2	12.7	35	10668	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	761	346
4 1/2	114	3/4	19	35	10668	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	1098	499
5	127	1/2	12.7	21' 6"	6553	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	548	249
5	127	3/4	19	21' 6"	6553	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	805	366
5	127	3/4	19	21' 6"	6553	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	801	364
5	127	11/32	8.8	21' 6"	6553	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	418	190
5	127	1/2	12.7	21' 6"	6553	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	550	250
5	127	1/2	12.7	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	620	282
5	127	3/4	19	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	911	414
5	127	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	471	214
5	127	1/2	12.7	25	7620	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	629	286
5	127	3/4	19	25	7620	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	920	418
5	127	1/2	12.7	26' 6"	8077	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	667	303
5	127	3/4	19	26' 6"	8077	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	976.8	444
5	127	1/2	12.7	26' 6"	8077	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	668.8	304
5	127	3/4	19	26' 6"	8077	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	981.2	446
5	127	11/32	8.8	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	556.6	253
5	127	3/4	19	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	1086.8	494
5	127	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	739.2	336
5	127	11/32	8.8	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	563.2	256
5	127	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1106.6	503
5	127	1/2	12.7	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	748	340
5	127	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1097.8	499
5	127	0.500	12.7	35	10668	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	855.8	389
5	127	3/4	19	35	10668	3 1/2" API	3 1/2" API	Atlas Copco T4/DM30/DM45	1265	575
5	127	1/2	12.7	35	10668	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	866.8	394
5	127	3/4	19	35	10668	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1273.8	579
5 1/2	140	3/4	19	20' 8"	6299	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	875.6	398
5 1/2	140	1/2	12.7	20' 8"	6299	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	609.4	277
5 1/2	140	1/2	12.7	20' 8"	6299	4"FH	4"FH	Atlas Copco T4/DM30/DM45	600.6	273
5 1/2	140	1	25.4	20' 8"	6300	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1020.8	464
5 1/2	140	3/4	19	25	7620	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1038.4	472
5 1/2	140	1/2	12.7	25	7620	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	715	325
5 1/2	140	1/2	12.7	25	7620	4"FH	4"FH	Atlas Copco T4/DM30/DM45	701.8	319
5 1/2	140	1	25.4	25	7620	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1218.8	554
5 1/2	140	1/2	12.7	25' 8"	7823	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	741.4	337
5 1/2	140	3/4	19	26' 6"	8077	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1097.8	499
5 1/2	140	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1236.4	562
5 1/2	140	1/2	12.7	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	855.8	389
5 1/2	140	1	25.4	30	9144	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1454.2	661
5 1/2	140	1/2	12.7	30	9144	4"FH	4"FH	Atlas Copco T4/DM30/DM45	844.8	384
5 1/2	140	1/2	12.7	30	9144	4" BECO	4" BECO	Atlas Copco T4/DM30/DM45	855.8	389
5 1/2	140	1/2	12.7	35	10668	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	976.8	444
5 1/2	140	3/4	19	35	10668	3 1/2" BECO	3 1/2" BECO	Atlas Copco T4/DM30/DM45	1434.4	652
5 1/2	140	1/2	12.7	35	10668	4" BECO	4" BECO	Atlas Copco T4/DM30/DM45	976.8	444

DM25

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	1/2	12.7	26' 6"	8077	2 3/8"API	2 3/8"API	AC DM25	439	199
3 1/2	89	1/2	12.7	30	9144	2 3/8"API	2 3/8"API	AC DM25	494	224
4	102	11/32	8.8	21	6400	2 7/8" API	2 7/8" API	AC DM25	317	144
4	102	11/32	8.8	25	7620	2 7/8" API	2 7/8" API	AC DM25	375	170

Pit Viper

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4 1/2	114	3/4	19	40	12192	3" BECO	3" BECO	PIT-VIPER	1278	581
4 1/2	114	3/4	19	37' 4"	11378	3" BECO	3" BECO	PIT-VIPER	1195	543
4 1/2	114	1/2	12.7	35	10668	3 1/2" API	3 1/2" API	PIT-VIPER	772	351
4 1/2	114	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	PIT-VIPER	669	304
4 1/2	127	1/2	12.7	30	9144	3 1/2" BECO	3 1/2" BECO	PIT-VIPER	757	344

ROC F6 L6 L8

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	5' 10 7/8"	1800	2 3/8" API	2 3/8" API	Atlas Copco ROC	57	26
3	76	5/32	4	6' 6 3/4"	2000	2 3/8" API	2 3/8" API	Atlas Copco ROC	44	20
3	76	5/32	4	9' 10"	3000	2 3/8" API	2 3/8" API	Atlas Copco ROC	64	29
3	76	5/32	4	9' 10"	3000	RD50-6	RD50-6	Atlas Copco ROC	64	29
3	76	1/4	6.3	9' 10"	3000	2 3/8" API	2 3/8" API	Atlas Copco ROC	86	39
3	76	1/4	6.3	21' 1 43/64"	3700	2 3/8" API	2 3/8" API	Atlas Copco ROC	103	47
3	76	5/32	4	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	Atlas Copco ROC	79	36
3	76	1/4	6.3	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	Atlas Copco ROC	110	50
3	76	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	134	61
3	76	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	161	73
3	76	1/4	6.3	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Atlas Copco ROC	158	72
3 1/2	89	11/32	8.8	4' 11 1/16"	1500	2 3/8" API	2 3/8" API	Atlas Copco ROC	59	27
3 1/2	89	1/4	6.3	4' 11 1/16"	1500	2 3/8" API	2 3/8" API	Atlas Copco ROC	51	23
3 1/2	89	1/4	6.3	4' 11 1/16"	1500	2 7/8" API	2 7/8" API	Atlas Copco ROC	53	24
3 1/2	89	1/4	6.3	6' 6 3/4"	2000	2 3/8" IF	2 3/8" IF	Atlas Copco ROC	66	30
3 1/2	89	1/4	6.3	6' 6 3/4"	2000	2 3/8" API	2 3/8" API	Atlas Copco ROC	66	30
3 1/2	89	5/32	4	9' 10"	3000	2 3/8" API	2 3/8" API	Atlas Copco ROC	66	30
3 1/2	89	1/4	6.3	9' 10"	3000	2 7/8" API	2 7/8" API	Atlas Copco ROC	95	43
3 1/2	89	1/4	6.3	12' 2 29/64"	3720	2 3/8" API	2 3/8" API	Atlas Copco ROC	110	50
3 1/2	89	5/32	4	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	Atlas Copco ROC	97	44
3 1/2	89	1/4	6.3	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	Atlas Copco ROC	136	62
3 1/2	89	11/32	8.8	13' 1 1/2"	4000	2 3/8" API	2 3/8" API	Atlas Copco ROC	161	73
3 1/2	89	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	165	75
3 1/2	89	5/32	4	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	121	55
3 1/2	89	1/4	6.3	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	165	75
3 1/2	89	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	196	89
3 1/2	89	1/4	6.3	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Atlas Copco ROC	194	88
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Atlas Copco ROC	231	105
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 3/8"IF	2 3/8"IF	Atlas Copco ROC	231	105
3 1/2	89	11/32	8.8	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	Atlas Copco ROC	233	106
4	102	11/32	8.8	9' 10"	3000	2 3/8" API	2 3/8" API	Atlas Copco ROC	156	71
4	102	1/4	6.3	13' 1 1/2"	4000	2 7/8" API	2 7/8" API	Atlas Copco ROC	165	75
4	102	11/32	8.8	13' 1 1/2"	4000	2 7/8" API	2 7/8" API	Atlas Copco ROC	207	94
4	102	1/4	6.3	16' 4 5/8"	5000	2 7/8" API	2 7/8" API	Atlas Copco ROC	198	90
4	102	1/4	6.3	16' 4 5/8"	5000	2 3/8" IF	2 3/8" IF	Atlas Copco ROC	198	90
4	102	11/32	8.8	16' 4 5/8"	5000	2 7/8" API	2 7/8" API	Atlas Copco ROC	251	114
4	102	11/32	8.8	16' 4 5/8"	5000	2 3/8" API	2 3/8" API	Atlas Copco ROC	251	114
4	102	11/32	8.8	16' 4 5/8"	5000	3 1/8" DIBH	3 1/8" DIBH	Atlas Copco ROC	251	114
4	102	1/4	6.3	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Atlas Copco ROC	231	105
4	102	1/4	6.3	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	Atlas Copco ROC	231	105
4	102	11/32	8.8	19' 8 7/32"	6000	2 7/8" API	2 7/8" API	Atlas Copco ROC	295	134
4	102	11/32	8.8	19' 8 7/32"	6000	2 3/8" API	2 3/8" API	Atlas Copco ROC	295	134
4	102	11/32	8.8	19' 8 7/32"	6000	3 1/8" DIBH	3 1/8" DIBH	Atlas Copco ROC	295	134
4 1/2	114	11/32	8.8	9' 10"	3000	3 1/2" API	3 1/2" API	Atlas Copco ROC	189	86
4 1/2	114	1/4	6.3	13' 1 1/2"	4000	3 1/2" API	3 1/2" API	Atlas Copco ROC	191	87
4 1/2	114	11/32	8.8	13' 1 1/2"	4000	3 1/2" API	3 1/2" API	Atlas Copco ROC	240	109
4 1/2	114	11/32	8.8	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Atlas Copco ROC	290	132
4 1/2	114	1/4	6.3	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Atlas Copco ROC	229	104
4 1/2	114	1/4	6.3	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	266	121
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	341	155
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	341	155
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3" BECO	3" BECO	Atlas Copco ROC	341	155
4 1/2	114	1/4	6.3	19' 8 7/32"	6000	3" BECO	3" BECO	Atlas Copco ROC	266	121
4 1/2	114	11/16	17	19' 8 7/32"	6000	3" BECO	3" BECO	Atlas Copco ROC	592	269
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	CUBEX #24	CUBEX #24	Atlas Copco ROC	341	155
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" DIBH	3 1/2" DIBH	Atlas Copco ROC	341	155
5	127	11/32	8.8	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Atlas Copco ROC	337	153
5	127	1/4	6.3	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Atlas Copco ROC	268	122
5	127	1/2	12.7	16' 4 5/8"	5000	3 1/2" API	3 1/2" API	Atlas Copco ROC	436	198
5	127	1/4	6.3	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	310	141
5	127	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	394	179
5	127	1/2	12.7	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Atlas Copco ROC	513	233
5 1/2	140	11/32	8.8	16' 4 5/8"	5000	4 1/2" API	4 1/2" API	Atlas Copco ROC	365	166
5 1/2	140	1/2	12.7	16' 4 5/8"	5000	4 1/2" API	4 1/2" API	Atlas Copco ROC	475	216
5 1/2	140	11/32	8.8	19' 8 7/32"	6000	4 1/2" API	4 1/2" API	Atlas Copco ROC	429	195
5 1/2	140	1/2	12.7	19' 8 7/32"	6000	4 1/2" API	4 1/2" API	Atlas Copco ROC	563	256

SKS SKFX MD

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4	102	3/4	19	35	10668	3 1/8" DIBH	3 1/8" DIBH	Cat/Reedrill/SKS/SKFX/MD	953	433
4 1/2	114	1/2	12.7	30	9144	3" BECO	3" BECO	Cat/Reedrill/SKS/SKFX/MD	684	311
4 1/2	114	1/2	12.7	30	9144	3 1/2" API	3 1/2" API	Cat/Reedrill/SKS/SKFX/MD	682	310
4 1/2	114	3/4	19	30	9144	3 1/2" API	3 1/2" API	Cat/Reedrill/SKS/SKFX/MD	957	435
4 1/2	114	1/2	12.7	30	9144	3 1/2" DIBH	3 1/2" DIBH	Cat/Reedrill/SKS/SKFX/MD	680	309
4 1/2	114	1/2	12.7	35	10668	3" BECO	3" BECO	Cat/Reedrill/SKS/SKFX/MD	790	359
4 1/2	114	1/2	12.7	35	10668	2 7/8" IF	2 7/8" IF	Cat/Reedrill/SKS/SKFX/MD	785	357
4 1/2	114	1/2	12.7	35	10668	3 1/2" DIBH	3 1/2" DIBH	Cat/Reedrill/SKS/SKFX/MD	785	357
4 1/2	114	1/2	12.7	35	10668	3 1/2" DIBH	3 1/2" DIBH	Cat/Reedrill/SKS/SKFX/MD	785	357
5	127	3/4	19	25	7620	3 1/2" BECO	3 1/2" BECO	Cat/Reedrill/SKS/SKFX/MD	928	422
5	127	3/4	19	30	9144	3 1/2" BECO	3 1/2" BECO	Cat/Reedrill/SKS/SKFX/MD	1102	501
5	127	3/4	19	35	10668	3 1/2" BECO	3 1/2" BECO	Cat/Reedrill/SKS/SKFX/MD	1283	583
5 1/2	140	1	25.4	7	2140	4 1/2" API	4 1/2" API	Cat/Reedrill/SKS/SKFX/MD	394	179
5 1/2	140	1/2	12.7	29' 9 53/64"	8784	4" BECO x 4" BECO		Cat/Reedrill/SKS/SKFX/MD	757	344
5 1/2	140	1/2	12.7	30	9144	4" BECO	4" BECO	Cat/Reedrill/SKS/SKFX/MD	856	389
5 1/2	140	3/4	19	30	9144	3 1/2" DIBH	3 1/2" DIBH	Cat/Reedrill/SKS/SKFX/MD	1256	571
5 1/2	140	1/2	12.7	35	10668	3 1/2" DIBH	3 1/2" DIBH	Cat/Reedrill/SKS/SKFX/MD	1003	456
5 1/2	140	1	25.4	35	10668	4 1/2" API	4 1/2" API	Cat/Reedrill/SKS/SKFX/MD	1692	769

T64 Carousel

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	11/32	8.8	20	6096	2 3/8" IF	2 3/8" IF	Schramm-Carousel	235	107
3 1/2	89	25/64	10	20	6096	2 3/8" IF	2 3/8" IF	Schramm-Carousel	277	126
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	2 7/8" IF	2 7/8" IF	Schramm-Carousel	330	150
4 1/2	114	11/32	8.8	19' 8 7/32"	6000	3 1/2" API	3 1/2" API	Schramm-Carousel	336	153
4 1/2	114	11/32	8.8	20	6096	2 7/8 IF	2 7/8" IF	Schramm-Carousel	336	153
4 1/2	114	11/32	8.8	20	6096	3 1/2" API	3 1/2" API	Schramm-Carousel	334	152
4 1/2	114	11/32	8.8	20	6096	NC35	NC35	Schramm-Carousel	332	151
4 1/2	114	1/2	12.7	20	6096	3 1/2" API	3 1/2" API	Schramm-Carousel	444	202
4 1/2	114	11/32	8.8	25	7620	2 7/8" IF	2 7/8" IF	Schramm-Carousel	416	189
4 1/2	114	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Schramm-Carousel	416	189
4 1/2	114	1/2	12.7	25	7620	3 1/2" API	3 1/2" API	Schramm-Carousel	550	250
4 1/2	114	11/32	8.8	8	2438	3 1/2" API	3 1/2" API	Schramm-T64	163	74
4 1/2	114	11/32	8.8	12	3658	3 1/2" API	3 1/2" API	Schramm-T64	224	102
4 1/2	114	11/32	8.8	20	6096	3 1/2" API	3 1/2" API	Schramm-T64	350	159
4 1/2	114	11/32	8.8	20' 6"	6248	3 1/2" API	3 1/2" API	Schramm-T64	354	161
4 1/2	114	11/32	8.8	17	5182	3 1/2" API	3 1/2" API	Schramm-T64	469	213
4 1/2	114	11/32	8.8	25	7620	3 1/2" API	3 1/2" API	Schramm-T64	429	195

Down the Hole DTH Drill Pipes and Adaptors

Black Diamond Drilling Down the Hole-DTH Drill Pipes Specifications

Black Diamond Drilling Down the Hole-DTH adaptors Specifications

Rig Specific Down the Hole-DTH Drill Pipes Specifications

Contact

Company

52 Distinction Road, Wangara WA 6065

08 6365 5660

sales@bddrill.com.au

Downloads

COMPANY CREDIT Application

CONDITIONS OF SALE STD
