Underground Production Drilling Tools
Underground Production Drilling plays a crucial role in resource extraction. It involves a combination of drilling, blasting, and material handling processes to efficiently recover and transport the extracted resources. Black Diamond Drilling can work closely with clients to develop and supply a large range of Underground Production Drilling Tools.
R32 Bit Thread
| DRILL BIT | Dimensions, D | Buttons, No. Size(mm) | Flushing Hole | Product Number | Compatibility | ||||
| Imperial | Metric | Front | Gauge | Angle | Front | Side | |||
| Parabolic Button Bit | |||||||||
 | 1 5/8" | 41mm | 2x8 | 6x9 | 35° | 1x6 | 1x6 | THU-N41FF-R32 | 90505171 |
| 1 11/16" | 43mm | 2x9 | 6x10 | 35° | 1x5 | 2x6 | THU-N43FF-R32 | 7733-6043-F49 | |
| 1 3/4" | 45mm | 2x9 | 6x10 | 30° | 1x5 | 2x6 | THU-N45FF-R32 | 7733-6045-F49 | |
| 1 7/8" | 48mm | 2x9 | 6x10 | 35° | 1x6 | 2x6 | THU-N48FF-R32 | 7733-6048-F49 | |
| 2" | 51mm | 2x10 | 6x11 | 30° | 1x6 | 2x7.5 | THU-N51FF-R32 | 7733-6051-F49 | |
| 2 1/4" | 57mm | 2x10 | 6x11 | 30° | 3x6 | 1x6 | THU-N57FF-R32 | 90510453 | |
| 2 1/2" | 64mm | 1x11 | 6x12 | 30° | 3x7 | 2x6 | THU-N64FF-R32 | 7733-1664-S48 | |
| 3" | 76mm | 5x10 | 6x13 | 30° | 4x7 | - | THU-N76FF-R32 | 7733-1876-S48 | |
| Semi-Ballistic Button Bit | |||||||||
 | 1 5/8" | 41mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N41FF-R32-SB | 90505172 |
| 1 11/16" | 43mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N43FF-R32-SB | 7733-5243A-S48 | |
| 1 3/4" | 45mm | 3x8 | 6x9 | 10° 35° | 1x5 | 2x6 | THU-N45FF-R32-SB | 7733-5245A-S48 | |
| 1 7/8" | 48mm | 3x8 | 6x9 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-R32-SB | 7733-5248A-S48 | |
| 2" | 51mm | 3x8 | 6x9 | 10° 40° | 1x6 | 2x7.5 | THU-N51FF-R32-SB | 7733-5251A-S48 | |
| 2 1/4" | 57mm | 3x8 | 6x9 | 10° 40° | 3x4.5 | 1x4.5 | THU-N57FF-R32-SB | 7733-5343A-R48 | |
| 2 1/2" | 64mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N64FF-R32-SB | 7733-5345A-R48 | |
| 3" | 76mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N76FF-R32-SB | 7733-5345A-S48 | |
| Ballistic Button Bit | |||||||||
 | 1 5/8" | 41mm | 2x8 | 6x9 | 10° 35° | 2x4.5 | 2x6 | THU-N41FF-R32-B | - |
| 1 11/16" | 43mm | 2x9 | 6x10 | 10° 35° | 2x4.5 | 2x6 | THU-N43FF-R32-B | - | |
| 1 3/4" | 45mm | 2x9 | 6x11 | 10° 35° | 1x5 | 2x6 | THU-N45FF-R32-B | 7733-5345A-S80 | |
| 1 7/8" | 48mm | 2x9 | 6x11 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-R32-B | 7733-5348A-R48 | |
| 2" | 51mm | 2x9 | 6x12 | 10° 40° | 3x5 | 1x6 | THU-N51FF-R32-B | 7733-1651A-R48 | |
| 2 1/4" | 57mm | 2x9 | 6x9 | 10° 40° | 3x5 | 1x6 | THU-N57FF-R32-B | 7733-1651A-S48 | |
| 2 1/2" | 64mm | 2x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N64FF-R32-B | 7733-1657A-S48 | |
| 3" | 76mm | 2x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N76FF-R32-B | - | |
| Cross Type Bit | |||||||||
 | 1 3/4" | 45mm | - | - | - | 1x4.5 | 4x4.5 | THU-N45X-R32 | 7733-1345A-42 |
| Dome Reaming Bit | |||||||||
 | 4" | 102mm | 1x13 | 14x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-102-32 | - |
| 5" | 127mm | 1x13 | 18x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-127-R32 | - | |
| Spear reaming Bit | |||||||||
 | 4" | 102mm | 3x10 | 12x13 | 35° | 3x6 | 1x6 | THU-REAMER-S-102/41-R32 | 7733-5602P-S48 |
| 5" | 127mm | 3x10 | 16x13 | 35° | 3x7 | 1x6 | THU-REAMER-S-127/76-R32 | 7733-5627P-S48 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||
BD35 Bit Thread
| DRILL BIT | Dimensions, D | Buttons, No. Size(mm) | Flushing Hole | Product Number | ||||
| Imperial | Metric | Front | Gauge | Angle | Front | Side | ||
| Parabolic Button Bit | ||||||||
| 1 5/8" | 41mm | 2x8 | 6x9 | 35° | 1x6 | 1x6 | THU-N41FF-BD35 |
| 1 11/16" | 43mm | 2x9 | 6x10 | 35° | 1x5 | 2x6 | THU-N43FF-BD35 | |
| 1 3/4" | 45mm | 2x9 | 6x10 | 30° | 1x5 | 2x6 | THU-N45FF-BD35 | |
| 1 7/8" | 48mm | 2x9 | 6x11 | 35° | 1x6 | 2x6 | THU-N48FF-BD35 | |
| 2" | 51mm | 2x10 | 6x12 | 30° | 1x6 | 2x7.5 | THU-N51FF-BD35 | |
| 2 1/4" | 57mm | 3x10 | 6x11 | 30° | 3x6 | 1x6 | THU-N57FF-BD35 | |
| 2 1/2" | 64mm | 3x11 | 6x12 | 30° | 3x7 | 2x6 | THU-N64FF-BD35 | |
| 3" | 76mm | 5x10 | 6x11 | 30° | 4x7 | - | THU-N76FF-BD35 | |
| Semi-Ballistic Button Bit | ||||||||
| 1 5/8" | 41mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N41FF-BD35-SB |
| 1 11/16" | 43mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N43FF-BD35-SB | |
| 1 3/4" | 45mm | 3x8 | 6x9 | 10° 35° | 1x5 | 2x6 | THU-N45FF-BD35-SB | |
| 1 7/8" | 48mm | 3x8 | 6x9 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-BD35-SB | |
| 2" | 51mm | 3x8 | 6x9 | 10° 40° | 1x6 | 2x7.5 | THU-N51FF-BD35-SB | |
| 2 1/4" | 57mm | 3x8 | 6x9 | 10° 40° | 3x4.5 | 1x4.5 | THU-N57FF-BD35-SB | |
| 2 1/2" | 64mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N64FF-BD35-SB | |
| 3" | 76mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N76FF-BD35-SB | |
| Ballistic Button Bit | ||||||||
| 1 5/8" | 41mm | 2x8 | 6x9 | 10° 35° | 2x4.5 | 2x6 | THU-N41FF-BD35-B |
| 1 11/16" | 43mm | 2x9 | 6x10 | 10° 35° | 2x4.5 | 2x6 | THU-N43FF-BD35-B | |
| 1 3/4" | 45mm | 2x9 | 6x11 | 10° 35° | 1x5 | 2x6 | THU-N45FF-BD35-B | |
| 1 7/8" | 48mm | 2x9 | 6x11 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-BD35-B | |
| 2" | 51mm | 2x9 | 6x12 | 10° 40° | 3x5 | 1x6 | THU-N51FF-BD35-B | |
| 2 1/4" | 57mm | 3x9 | 6x9 | 10° 40° | 3x5 | 1x6 | THU-N57FF-BD35-B | |
| 2 1/2" | 64mm | 3x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N64FF-BD35-B | |
| 3" | 76mm | 3x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N76FF-BD35-B | |
| Cross Type Bit | ||||||||
| 1 3/4" | 45mm | - | - | - | 1x4.5 | 4x4.5 | THU-N45X-BD35 |
| Dome Reaming Bit | ||||||||
| 4" | 102mm | 1x13 | 14x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-102-BD35 |
| 5" | 127mm | 1x13 | 18x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-127-BD35 | |
| Spear reaming Bit | ||||||||
| 4" | 102mm | 3x10 | 12x13 | 35° | 3x6 | 1x6 | THU-REAMER-S-102/41-BD35 |
| 5" | 127mm | 3x10 | 16x13 | 35° | 3x7 | 1x6 | THU-REAMER-S-127/76-BD35 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | ||||||||
R35 Bit Thread
| DRILL BIT | Dimensions, D | Buttons, No. Size(mm) | Flushing Hole | Product Number | ||||
| Imperial | Metric | Front | Gauge | Angle | Front | Side | ||
| Parabolic Button Bit | ||||||||
| 1 5/8" | 41mm | 2x8 | 5x9 | 35° | 1x6 | 1x6 | THU-N41FF-R35 |
| 1 11/16" | 43mm | 2x9 | 5x10 | 35° | 1x5 | 2x6 | THU-N43FF-R35 | |
| 1 3/4" | 45mm | 2x9 | 5x10 | 30° | 1x5 | 2x6 | THU-N45FF-R35 | |
| 1 7/8" | 48mm | 2x9 | 5x11 | 35° | 1x6 | 2x6 | THU-N48FF-R35 | |
| 2" | 51mm | 2x10 | 5x12 | 30° | 1x6 | 2x7.5 | THU-N51FF-R35 | |
| 2 1/4" | 57mm | 3x10 | 6x11 | 30° | 3x6 | 1x6 | THU-N57FF-R35 | |
| 2 1/2" | 64mm | 3x11 | 6x12 | 30° | 3x7 | 2x6 | THU-N64FF-R35 | |
| 3" | 76mm | 5x10 | 8x11 | 30° | 4x7 | - | THU-N76FF-R35 | |
| Semi-Ballistic Button Bit | ||||||||
| 1 5/8" | 41mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N41FF-R35-SB |
| 1 11/16" | 43mm | 3x8 | 6x9 | 10° 35° | 3x4.5 | 2x6 | THU-N43FF-R35-SB | |
| 1 3/4" | 45mm | 3x8 | 6x9 | 10° 35° | 1x5 | 2x6 | THU-N45FF-R35-SB | |
| 1 7/8" | 48mm | 3x8 | 6x9 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-R35-SB | |
| 2" | 51mm | 3x8 | 6x9 | 10° 40° | 1x6 | 2x7.5 | THU-N51FF-R35-SB | |
| 2 1/4" | 57mm | 3x8 | 6x9 | 10° 40° | 3x4.5 | 1x4.5 | THU-N57FF-R35-SB | |
| 2 1/2" | 64mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N64FF-R35-SB | |
| 3" | 76mm | 3x9 | 6x10 | 10° 40° | 3x4.5 | 1x4.5 | THU-N76FF-R35-SB | |
| Ballistic Button Bit | ||||||||
| 1 5/8" | 41mm | 2x8 | 6x9 | 10° 35° | 2x4.5 | 2x6 | THU-N41FF-R35-B |
| 1 11/16" | 43mm | 2x9 | 6x10 | 10° 35° | 2x4.5 | 2x6 | THU-N43FF-R35-B | |
| 1 3/4" | 45mm | 2x9 | 6x11 | 10° 35° | 1x5 | 2x6 | THU-N45FF-R35-B | |
| 1 7/8" | 48mm | 2x9 | 6x11 | 10° 35° | 1x6 | 2x7.5 | THU-N48FF-R35-B | |
| 2" | 51mm | 2x9 | 6x12 | 10° 40° | 3x5 | 1x6 | THU-N51FF-R35-B | |
| 2 1/4" | 57mm | 3x9 | 6x9 | 10° 40° | 3x5 | 1x6 | THU-N57FF-R35-B | |
| 2 1/2" | 64mm | 3x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N64FF-R35-B | |
| 3" | 76mm | 3x9 | 6x10 | 10° 40° | 3x5 | 1x6 | THU-N76FF-R35-B | |
| Cross Type Bit | ||||||||
| 1 3/4" | 45mm | - | - | - | 1x4.5 | 4x4.5 | THU-N45X-R35 |
| Dome Reaming Bit | ||||||||
| 4" | 102mm | 1x13 | 14x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-102-R35 |
| 5" | 127mm | 1x13 | 18x13 | 35° | 3x6 | 1x6 | THU-REAMER-D-127-R35 | |
| Spear reaming Bit | ||||||||
| 4" | 102mm | 3x10 | 12x13 | 35° | 3x6 | 1x6 | THU-REAMER-S-102/41-R35 |
| 5" | 127mm | 3x10 | 16x13 | 35° | 3x7 | 1x6 | THU-REAMER-S-127/76-R35 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | ||||||||
T38 Bit Thread
| DRILL BIT | Diameter | Tip Size, mm | Flushing Hole | Product Number | Compatibility | ||||
| Imperial | Metric | Front | Gauge | Angle | Front | Side | |||
| Button Bit | |||||||||
 | 2 1/2" | 64mm | 4x10 | 6x10 | 40° | 1x5 | 1x5 | THU-N64FF-T38 | 7514-2664A-S48 |
| 2 1/2" | 64mm | 4x10 | 6x10 | 30° | 1x6 | 1x6 | THU-N64DC-T38 | 7514-1664-R48 | |
 | 2 1/2" | 64mm | 4x10 | 6x10 | 30° | 1x5 | 1x6 | THU-R64FF-T38 | 7732-4437C-S48 |
| 2 1/2" | 64mm | 4x10 | 6x10 | 35° | 1x6 | 1x6 | THU-R64DC-T38 | 7514-4864-R48 | |
 | 3" | 76mm | 4x10 | 6x10 | 35° | 2x6 | 2x6 | THU-N76FF-T38 | 7732-5241-S48 |
| 3" | 76mm | 4x10 | 6x10 | 35° | 2x6 | 2x6 | THU-N76DC-T38 | 7514-1876-R48 | |
 | 3" | 76mm | 4x11 | 6x11 | 35° | 2x11 | 1x6 | THU-R76FF-T38 | 7514-7876A-S48 |
| 3" | 76mm | 4x11 | 6x11 | 35° | 4x8 | - | THU-R76DC-T38 | 7514-4876-R48 | |
| Cross Type Bit | |||||||||
| 2 1/2" | 64mm | - | - | - | 1 | 2 | THU-N64X-T38 | - |
| 3" | 76mm | - | - | - | 1 | 2 | THU-N76X-T38 | - | |
| 3 1/2" | 89mm | - | - | - | 1 | 2 | THU-N89X-T38 | - | |
| Dome Bit for Reaming | |||||||||
| 4" | 102mm | 1x13 | 12x13 | 35° | 2 | 2 | THU-REAMER-D-102-T38 | - |
| 5" | 127mm | 1x13 | 12x13 | 35° | 1 | 3 | THU-REAMER-D-127-T38 | - | |
| Spear Bit for Reaming | |||||||||
| 4" | 102mm | 3x13 | 12x14 | 35° | - | 4x9 | THU-REAMER-102/47-T38 | 7514-5627-S48 |
| 5" | 127mm | 3x14 | 12x14 | 35° | - | 4x9 | THU-REAMER-127/57-T38 | - | |
| 6" | 152mm | 3x14 | 12x14 | 35° | - | 4x9 | THU-REAMER-152/57-T38 | - | |
| 6" | 152mm | 3x14 | 12x14 | 35° | - | 4x9 | THU-REAMER-152/89-T38 | 7514-5652-S48 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||
T45 Bit Thread
| DRILL BIT | Diameter | Buttons, mm | Flushing Hole, mm | Product Number | Compatibility | ||||
| Imperial | Metric | Front No Size | Gauge No Size | Angle | Front No Size | Gauge No Size |
|||
| Button bit | |||||||||
 | 3" | 76mm | 4x12 | 8x12 | 30° | 2x12 | 1x7 | THU-N76FF-T45 | 7515-2676A-S48 |
| 3" | 76mm | 4x11 | 6x12 | 35° | 3x10 | 1x9 | THU-N76DC-T45 | 7515-5576A-C60 | |
 | 3" | 76mm | 6x18 | 8x11 | 35° | 2x11 | 1x6 | THU-R76FF-T45 | 7515-7876A-S48 |
| 3" | 76mm | 4x11 | 6x12 | 35° | 3x9 | 1x9 | THU-R76DC-T45 | 7515-7576A-C60 | |
 | 3 1/2" | 89mm | 6x10 | 8x11 | 35° | 3x10 | 1x8 | THU-N89FF-T45 | 7515-2689A-S48 |
| 3 1/2" | 89mm | 5x11 | 6x13 | 35° | 3x10 | 1x10 | THU-N89DC-T45 | 7515-5589A-C60 | |
 | 3 1/2" | 89mm | 6x10 | 8x11 | 35° | 3x10 | 1x8 | THU-R89FF-T45 | 7515-7889A-S48 |
| 3 1/2" | 89mm | 5x12 | 6x13 | 40° | 3x10 | 1x10 | THU-R89DC-T45 | 7515-7589A-C60 | |
| Reaming Bits | |||||||||
| 5" | 127mm | 1x13 | 18x13 | 35° | 3x9 | 1x9 | THU-REAMER-127-T45 | - |
| 6" | 152mm | 2x14 | 18x14 | 35° | 3x9 | 1x9 | THU-REAMER-152-T45 | - | |
| 4" | 102mm | 4x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-102/60-T45 | 7515-5627-S48 |
| 4 1/2" | 115mm | 4x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-115/60-T45 | - | |
| 4 1/2" | 115mm | 4x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-115/76-T45 | - | |
| 5" | 127mm | 4x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-127/64-T45 | - | |
| 5" | 127mm | 4x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-127/76-T45 | - | |
| 6" | 152mm | 8x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-152/70-T45 | 7515-5652-S48 | |
| 6" | 152mm | 8x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-152/80-T45 | - | |
 | 8" | 204mm | 8x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-204/76-T45 | - |
| 8" | 204mm | 8x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-204/137-T45 | 7528-5604-S81 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||
T51 Bit Thread
| DRILL BIT | Diameter | Buttons, mm | Flushing Hole, mm | Product Number | Compatibility | ||||
| Imperial | Metric | Front No Size | Gauge No Size | Angle | Front No Size | Gauge No Size |
|||
| Button bit | |||||||||
 | 3 1/2" | 89mm | 6x10 | 8x11 | 35° | 3x12 | 1x8 | THU-N89FF-T51 | 7516-2689A-S48 |
| 3 1/2" | 89mm | 5x11 | 6x13 | 40° | 3x12 | 1x12 | THU-N89DC-T51 | 7516-5589A-C60 | |
 | 3 1/2" | 89mm | 6x10 | 8x11 | 35° | 3x12 | 1x8 | THU-R89FF-T51 | 7516-7889A-S48 |
| 3 1/2" | 89mm | 5x11 | 6x13 | 40° | 3x12 | 1x12 | THU-R89DC-T51 | 7516-7589A-C60 | |
 | 4" | 102mm | 9x11 | 9x13 | 40° | 3x13 | - | THU-N102FF-T51 | 7516-1902-R48 |
| 4" | 102mm | 7x11 | 8x13 | 40° | 4x11 | 1x11 | THU-N102DC-T51 | 7516-5502A-C60 | |
 | 4" | 102mm | 8x12 | 10x13 | 35° | 5x10 | - | THU-R102FF-T51 | 7516-7002-S70 |
| 4" | 102mm | 7x11 | 8x13 | 40° | 3x11 | 1x11 | THU-R102DC-T51 | 7516-7502A-C60 | |
| Reaming Bits | |||||||||
 | 6" | 152mm | 2x14 | 18x14 | 35° | 3x11 | 1x11 | THU-REAMER-D-152-T51 | - |
| 5" | 127mm | 8x14 | 8x14 | 35° | - | 4x9 | THU-REAMER-127/57-T51 | - |
| 6" | 152mm | 9x16 | 9x16 | 35° | - | 3x16 | THU-REAMER-152/89-T51 | 7516-5652-S48 | |
| 8" | 204mm | 9x16 | 9x16 | 35° | - | 3x16 | THU-REAMER-204/89-T51 | 7529-5604-S81 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||
ST58 Bit Thread
| DRILL BIT | Diameter | Buttons, mm | Flushing Hole, mm | Product Number | Compatibility | ||||
| Imperial | Metric | Front No Size | Gauge No Size | Angle | Front No Size | Gauge No Size |
|||
| Button bit | |||||||||
 | 3 1/2" | 89mm | 6x12 | 8x13 | 40° | 4x10 | - | THU-N89FF-ST58 | 7528-6289-F70 |
| 3 1/2" | 89mm | 6x12 | 8x12 | 35° | 4x10 | - | THU-N89DC-ST58 | 7528-8489-R65 | |
 | 3 1/2" | 89mm | 8x11 | 9x13 | 35° | 3x12 | - | THU-R89FF-ST58 | 7528-8589-S70 |
| 3 1/2" | 89mm | 4x12 | 10x12 | 35° | 4x10 | - | THU-R89DC-ST58 | 7528-7389-R65 | |
 | 4" | 102mm | 8x12 | 10x12 | 35° | 4x10 | - | THU-R102FF-ST58 | 7528-7302-R70 |
| 4 1/2" | 115mm | 7x14 | 10x14 | 35° | 4x10 | - | THU-N115FF-ST58 | 7733-5345A-R48 | |
 | 4 1/2" | 115mm | 8x14 | 10x14 | 35° | 4x10 | - | THU-N115DC-ST58 | - |
| 4 1/2" | 115mm | 8x14 | 10x14 | 35° | 4x10 | - | THU-R115FF-ST58 | 7528-7315-R70 | |
| Reaming Bits | |||||||||
| 4 1/2" | 115mm | - | 8x14 | 35° | - | 3x14 | THU-REAMER-115/76-ST58 | 7528-5627-S81 |
| 5" | 127mm | - | 8x14 | 35° | - | 3x14 | THU-REAMER-127/76-ST58 | 7528-5652-S81 | |
| 6" | 152mm | - | 8x14 | 35° | - | 3x16 | THU-REAMER-152/76-ST58 | - | |
| 6" | 152mm | - | 8x14 | 35° | - | 3x16 | THU-REAMER-152/80-ST58 | - | |
| 7" | 176mm | - | 8x14 | 35° | - | 3x16 | THU-REAMER-176/110-ST58 | - | |
| 8" | 204mm | - | 9x16 | 35° | - | 3x16 | THU-REAMER-204/76-ST58 | 7528-5604-S81 | |
| 8" | 204mm | - | 9x14 | 35° | - | 3x16 | THU-REAMER-204/137-ST58 | - | |
| 10" | 254mm | - | 9X15 | 35° | - | 3x18 | THU-REAMER-254/150-ST58 | - | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||
ST68 Bit Thread
| DRILL BIT | Diameter | Buttons, mm | Flushing Hole, mm | Product Number | Compatibility | ||||
| Imperial | Metric | Front No Size | Gauge No Size | Angle | Front No Size | Gauge No Size |
|||
| Button bit | |||||||||
| 4" | 102mm | 9x12 | 9x14 | 40° | 3x13 | - | THU-N102FF-ST68 | 7529-6202-F70 |
| 4" | 102mm | 8x12 | 10x12 | 35° | 4x10 | - | THU-N102DC-ST68 | 7529-8402-R65 | |
| 4" | 102mm | 5x14 | 8x16 | 35° | 2x15 | - | THU-R102FF-ST68 | 7529-8902-S65 |
| 4" | 102mm | 8x12 | 10x12 | 35° | 4x10 | - | THU-R102DC-ST68 | 7529-7302-R70 | |
| 4 1/2" | 115mm | 8x14 | 10x14 | 35° | 4x10 | - | THU-N115DC-ST68 | 7529-8415-R70 |
| 4 1/2" | 115mm | 8x14 | 10x14 | 35° | 4x10 | - | THU-R115FF-ST68 | 7529-7315-R65 | |
| 5" | 127mm | 8x14 | 8x16 | 35° | 4x12 | - | THU-N127FF-ST68 | - |
| 5" | 127mm | 8x14 | 8x16 | 35° | 4x12 | - | THU-R127FF-ST68 | - | |
| Reaming Bits | |||||||||
| 6" | 152mm | 4x16 | 8x16 | 35° | 4x9 | - | THU-REAMER-152/76-ST68 | 7529-5652-S81 |
| 8" | 204mm | 9x16 | 9x18 | 35° | 3x16 | - | THU-REAMER-204/89-ST68 | 7529-5604-S81 | |
| 10" | 254mm | 9x16 | 9x18 | 35° | 3x16 | - | THU-REAMER-254/150-ST68 | 7529-5654-S65 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||||||

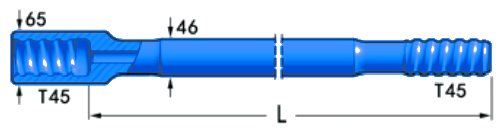

MF Speed Rods
| ROD THREAD | Dimensions | Part Number | Compatibility | |||
| Length, L | Diameter | |||||
| Imperial | Metric | Imperial | Metric | |||
| R32 | ||||||
 | 4' | 1220mm | 1 1/4" | 32mm | ROD-THU-R32/R32/R32-1220-MF | 90500834 |
| 5' | 1525mm | 1 1/4" | 32mm | ROD-THU-R32/R32/R32-1525-MF | 90500627 | |
| 6' | 1830mm | 1 1/4" | 32mm | ROD-THU-R32/R32/R32-1830-MF | 90500628 | |
| 10' | 3090mm | 1 1/4" | 32mm | ROD-THU-R32/R32/R32-3090-MF | - | |
| T35 | ||||||
 | 4' | 1220mm | 1 1/2" | 39mm | ROD-THU-T35/R39/T35-1220-MF | - |
| 5' | 1525mm | 1 1/2" | 39mm | ROD-THU-T35/R39/T35-1525-MF | - | |
| 6' | 1830mm | 1 1/2" | 39mm | ROD-THU-T35/R39/T35-1830-MF | - | |
| 10' | 3090mm | 1 1/2" | 39mm | ROD-THU-T35/R39/T35-3090-MF | - | |
| R35 | ||||||
 | 4' | 1220mm | 1 1/2" | 39mm | ROD-THU-R35/R39/R35-1220-MF | - |
| 5' | 1525mm | 1 1/2" | 39mm | ROD-THU-R35/R39/R35-1525-MF | - | |
| 6' | 1830mm | 1 1/2" | 39mm | ROD-THU-R35/R39/R35-1830-MF | - | |
| 10' | 3090mm | 1 1/2" | 39mm | ROD-THU-R35/R39/R35-3090-MF | - | |
| T38 | ||||||
 | 4' | 1220mm | 1 1/2" | 39mm | ROD-THU-T38/R39/T38-1220-MF | 90510719 |
| 5' | 1525mm | 1 1/2" | 39mm | ROD-THU-T38/R39/T38-1525-MF | 7324-4715C-20 90510720 |
|
| 6' | 1830mm | 1 1/2" | 39mm | ROD-THU-T38/R39/T38-1830-MF | 7324-4718C-20 90510721 |
|
| 10' | 3090mm | 1 1/2" | 39mm | ROD-THU-T38/R39/T38-3090-MF | - | |
| T45 | ||||||
 | 4' | 1220mm | 1 3/4" | 46mm | ROD-THU-T45/R46/T45-1220-MF | 7325-7712C-20 |
| 5' | 1525mm | 1 3/4" | 46mm | ROD-THU-T45/R46/T45-1525-MF | 90510730 | |
| 6' | 1830mm | 1 3/4" | 46mm | ROD-THU-T45/R46/T45-1830-MF | 90510731 | |
| 10' | 3090mm | 1 3/4" | 46mm | ROD-THU-T45/R46/T45-3090-MF | - | |
| T51 | ||||||
 | 4' | 1220mm | 2" | 52mm | ROD-THU-T51/R52/T51-1220-MF | 7326-5512C-20 |
| 5' | 1525mm | 2" | 52mm | ROD-THU-T51/R52/T51-1525-MF | 7326-5515C-20 90510737 |
|
| 6' | 1830mm | 2" | 52mm | ROD-THU-T51/R52/T51-1830-MF | 7326-5518C-20 90510738 |
|
| 10' | 3090mm | 2" | 52mm | ROD-THU-T51/R52/T51-3090-MF | - | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | ||||||
Guide Tubes
| GUIDE TUBE | Dimensions | Part Number | Compatibility | |||
| Length, L | Diameter | |||||
| Imperial | Metric | Imperial | Metric | |||
| T38 | ||||||
 | 4' | 1220mm | 2 1/8" | 56mm | GTUBE-THU-T38-1220-MF | 7955-5612-20 94502648 |
| 5' | 1525mm | 2 1/8" | 56mm | GTUBE-THU-T38-1525-MF | 94000051 | |
| 6' | 1830mm | 2 1/8" | 56mm | GTUBE-THU-T38-1830-MF | 7955-5618-20 94000052 |
|
| T45 | ||||||
 | 4' | 1220mm | 2 1/2" | 64mm | GTUBE-THU-T45-1220-MF | 94502687 |
| 5' | 1525mm | 2 1/2" | 64mm | GTUBE-THU-T45-1525-MF | 94000047 | |
| 6' | 1830mm | 2 1/2" | 64mm | GTUBE-THU-T45-1830-MF | 94000046 | |
| T51 | ||||||
 | 4' | 1220mm | 3" | 76mm | GTUBE-THU-T51-1220-MF | 90514257 |
| 5' | 1525mm | 3" | 76mm | GTUBE-THU-T51-1525-MF | - | |
| 6' | 1830mm | 3" | 76mm | GTUBE-THU-T51-1830-MF | 7957-7618-20 94000046 |
|
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | ||||||
Drill Tubes
| THREAD | Dimensions | Part Number | Compatibility | |||
| Length, L | Diameter | |||||
| Imperial | Metric | Imperial | Metric | |||
| T45 | ||||||
 | 4' | 1220mm | 2 1/2" | 65mm | TUBE-THU-T45-1220-MF | - |
| 5' | 1525mm | 2 1/2" | 65mm | TUBE-THU-T45-1525-MF | 7985-6315-26 | |
| 6' | 1830mm | 2 1/2" | 65mm | TUBE-THU-T45-1830-MF | 7985-6318-26 | |
| ST58 | ||||||
 | 4' | 1220mm | 3" | 76mm | TUBE-THU-ST58-1220-MF | - |
| 5' | 1525mm | 3" | 76mm | TUBE-THU-ST58-1525-MF | 7378-7615-26 | |
| 6' | 1830mm | 3" | 76mm | TUBE-THU-ST58-1830-MF | 7378-7618-26 | |
| ST68 | ||||||
 | 4' | 1220mm | 3 1/2" | 87mm | TUBE-THU-ST68-1220-MF | - |
| 5' | 1525mm | 3 1/2" | 87mm | TUBE-THU-ST68-1525-MF | 7379-8715-26 | |
| 6' | 1830mm | 3 1/2" | 87mm | TUBE-THU-ST68-1830-MF | 7379-8718-26 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | ||||||
Production Drilling Shank Adaptors
| SHANK ADAPTOR | Drifter Model | Thread | Length, L | Part Number | Compatibility |
 | HL1000 | T45 | 590mm | THU-SHANK-HL1000-T45/590/52 | 7305-6008-01 |
| HL1000 | T51 | 670mm | THU-SHANK-HL1000-T51/670/52 | 7306-6010-02 | |
 | HL1500ST | ST58 | 635mm | THU-SHANK-HL1500ST-ST58 | 7328-6035-01 |
| HL1500ST | ST68 | 635mm | THU-SHANK-HL1500ST-ST68 | 7329-6035-05 | |
 | HL1560ST | ST58 | 635mm | THU-SHANK-HL1560ST-ST58 | 7328-6020-01 |
| HL1560ST | ST68 | 635mm | THU-SHANK-HL1560ST-ST68 | 7329-6020-05 | |
 | HL500 | T38 | 550mm | THU-SHANK-HL500S-T38/460/45 | 7304-7557-01 |
| HL500 | T45 | 550mm | THU-SHANK-HL500S-T45/460/45 | 7305-7557-01 | |
 | HL700 | T45 | 600mm | THU-SHANK-HL710-T45/600/45 | 7305-7577-02 |
| HL700 | T45 | 600mm | THU-SHANK-HL710-T45/600/52 | 7306-7577-03 | |
 | COP 1838/1532 | T38 | 525mm | THU-SHANK-1838-T38/525/38 | 90516121 |
 | COP 1838ME | T38 | 435mm | THU-SHANK-1838ME-T38/435/38 | 90516120 |
| COP 1838EX | T45 | 730mm | THU-SHANK-1838EX-T45/730/52 | 7305-3826-02 |
| COP 1838MUX+ | T38 | 730mm | THU-SHANK-1838MUX-T38/730/52 | 7304-3663-01 |
| COP 1838MUX+ | T45 | 730mm | THU-SHANK-1838MUX-T45/730/52 | 7305-3663-01 | |
 | COP 2550UX | T45 | 730mm | THU-SHANK-2550UX-T45/770/60 | 90516030 |
| COP 2550UX | ST58 | 770mm | THU-SHANK-2550UX-ST58/770/77 | 90516511 | |
 | COP 4050MUX | ST58 | 835mm | THU-SHANK-4050MUX-ST58/835/90 | 7328-3720-01 |
| COP 4050MUX | ST68 | 835mm | THU-SHANK-4050MUX-ST68/835/90 | 7329-3720-01 | |
| While every effort has been made to ensure compatibility it is the clients responsibility to ensure product compatibility before use. | |||||
