Black Diamond Drilling Friction Bolts

OVERVIEW

Black Diamond Drilling Friction Bolts are an efficient fortification product that provide instant frictional support of the face. They can be installed by hand or mechanically.
Friction Bolts are inserted into the smaller drilled hole creating force against the walls of the drilled hole which creates frictional resistance along the entire length of the bolt.

ADVANTAGES

• Simple and fast installation
• Immediate load support after installation
• Affordable support solution
• ISO-9002 Certified
• Can be strengthened with resin or grouting

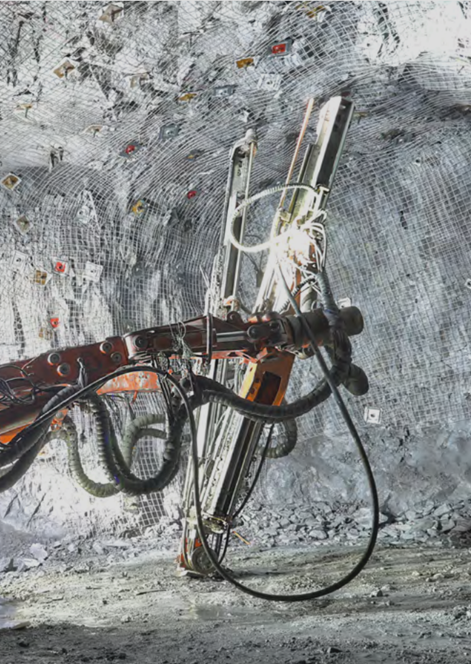

Black Diamond Drilling Split set friction bolts
Specifications
Diameter33mm39mm47mm
Lenghts0.9-2.4m0.9-2.4m0.9-3.0m
Recommended Drilled Diameter29-31mm35-38mm43-45mm
Yield Strength115kN117kN180kN
Total Tensile Strength122kN125kN195kN

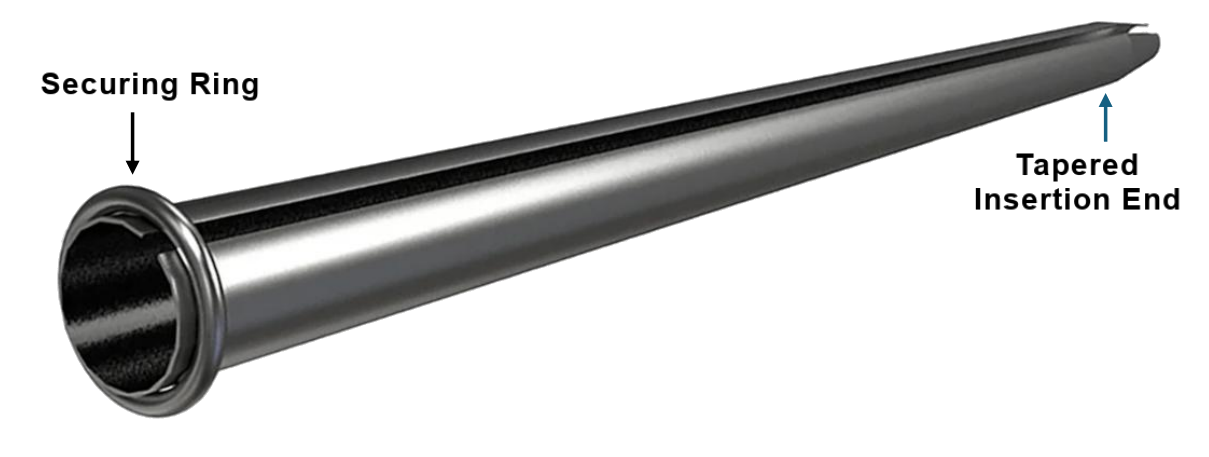

Black Diamond Drilling Friction Bolt
