Drill Rig

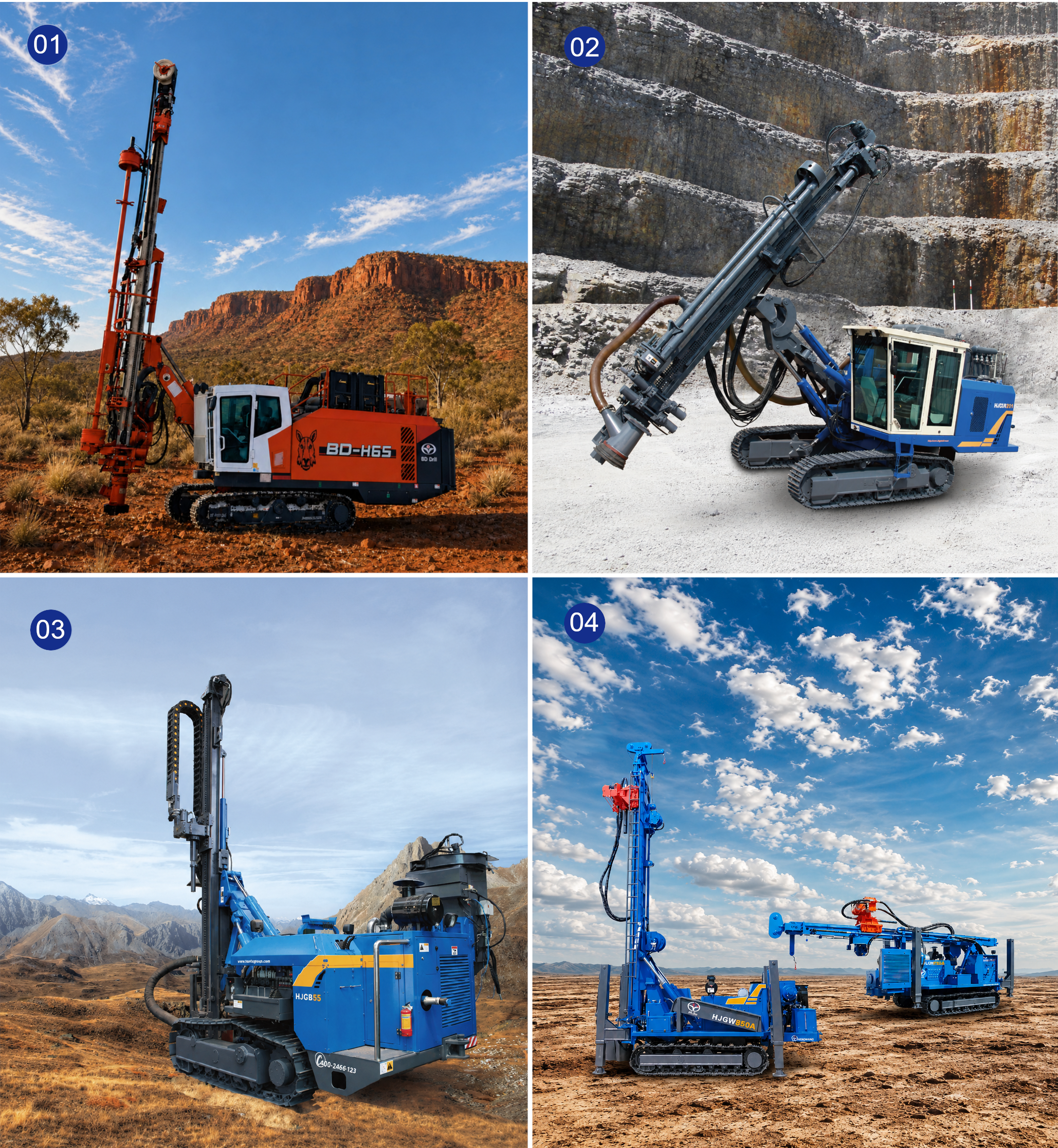

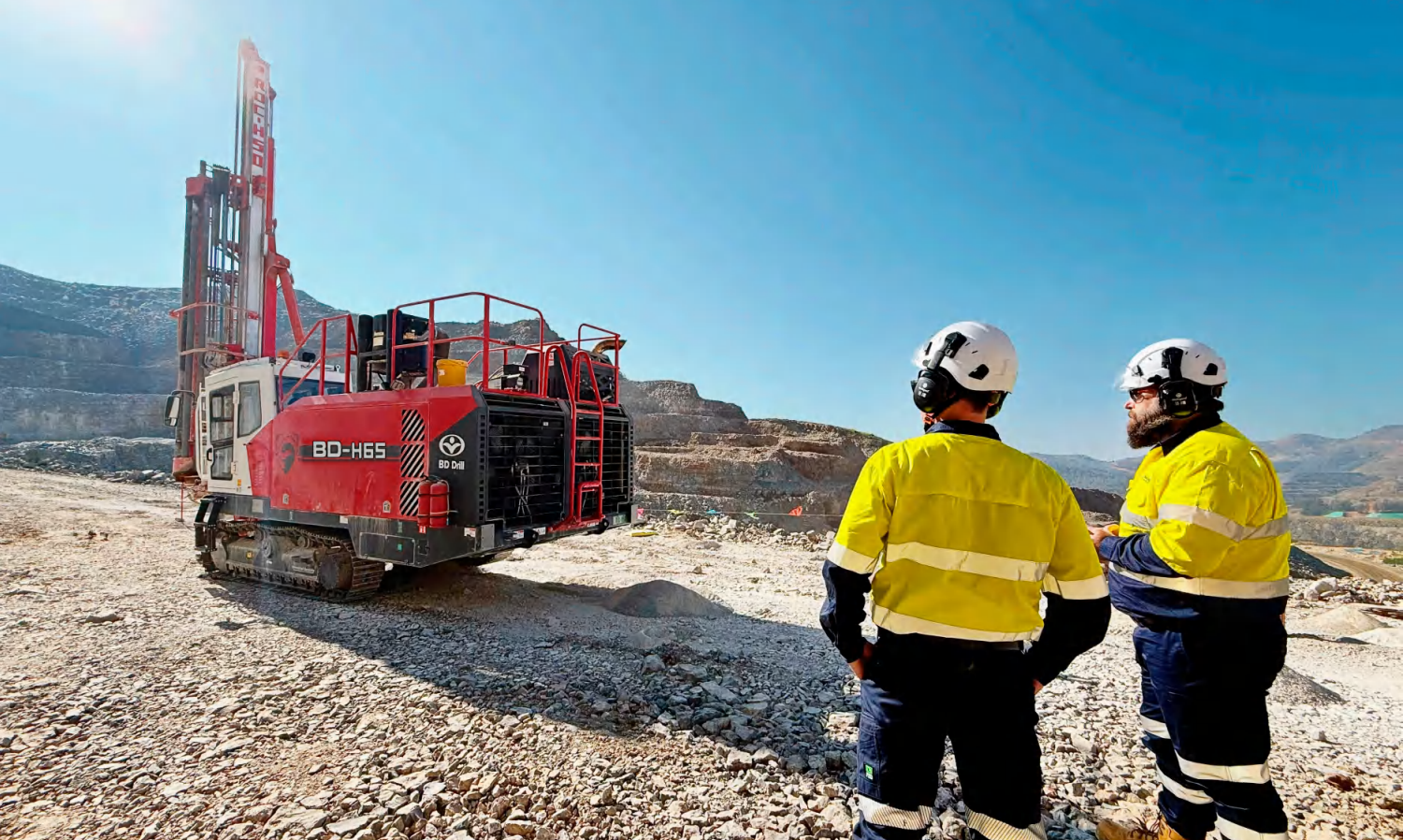

Black Diamond Drilling Drill Rigs

Full Hydraulic Multifunctional Drilling Rig Parameters

Parameter	Type
Parameter	HJG-M165	HJG-M311
Aperture	140-180mm	203-311mm
Drilling Depth	24m	24m
Adaptive Rock	f⩽8
Rotation torque	4000Nm	6000Nm
Rotary speed	0~60rpm	0~40rpm
Thrust capacity	40kN	75kN
Feed stroke	4380mm	4380mm
Lifting Speed	0.5m/s	0.3m/s
Hammer Model	HD65	HD85/HD110
Drill rod diameter	110mm	146mm
Drill rod length	4mX6	4mX6
Travel speed	2.5Km/h 3Km/h	2.5Km/h 3Km/h
Grade ability	25°	25°
Rising height from ground	450mm	450mm
Wind pressure	1.38~3.2Mpa	1.38~3.2Mpa
Air consumption	⩾25m³/min	⩾28m³/min
Engine power	75kW	93kW
Dimensions	Length X Width X Height
On transportation	9000X2900X3400mm	9000X2900X3400mm
On working conditions	7700X2900X7800mm	7700X2900X7800mm
Gross weight	17T	18T

Crawler Hydraulic Wells-Geothermal Drilling Parameters

Parameter	Type
Parameter	HJG-W830C	HJG-W830A	HJG-W850A
Aperture	105~311mm	105~311mm	130~350mm
Drilling depth	300m	300m	500m
Cylinder legs	Common legs	High legs	High legs
Adaptive rock	f⩽8
Rotation torque	4400Nm	3450Nm 6900Nm	4250Nm 8500Nm
Rotary speed	0~100r/min	0~100r/min 0~55r/min	0~180r/min 0~90r/min
Thrust capacity	60kN	60kN	60kN
Feed stroke	3700mm	3700mm	5300mm
Lifting capacity	120kN	120kN	200kN
Hammer model	HD45/HD55/HD65	HD45/HD55/HD65	HD65/HD85/HN10
Drill rod diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm
Drill rod length	3m	3m	4.5m
Travel speed	2.5Km/h	2.5Km/h	3.2Km/h
Grade ability	21°	21°	21°
Rising height from ground	300mm	300mm	300mm
Wind pressure	1.05~2.46Mpa	1.05~2.46Mpa	1.05~3.5Mpa
Air consumption	⩾18m³/min	⩾18m³/min	⩾25m³/min
Engine power	93kW	93kW	132kW
Dimensions	LengthXWidthXHeight
On transportation	5800X2210X2850mm	5800X2210X2850mm	8085X2250X3200mm
On working	4920X2210X6700mm	4920X2210X6700mm	5498X2250X8941mm
Gross weight	8.8T	9.5T	12.5T

Hydraulic Open-Air Blast Hole Drilling Rig Parameters

Parameter	Type
Parameter	HJG-B138	HJG-B168
Aperture	90~152mm	105~180mm
Drilling Depth	30m	30m
Adaptive Rock	f⩽8
Rotation torque	3000Nm	4000Nm
Rotary speed	0~72r/min
Thrust capacity	32kN	32kN
Feed stroke	4000mm	4000mm
Lifting capacity	32kN	32kN
Lifting Speed	0.5m/s	0.5m/s
Hammer Model	HD45/HD55	HD65/HD85
Drill rod diameter	76mm, 89mm	89mm, 114mm
Travel speed	2.5Km/h 3.8Km/h	2.5Km/h 3.8Km/h
Grade ability	30°	30°
Wind pressure	1.05~2.46Mpa	1.38~2.46Mpa
Air consumption	⩾18m³/min	⩾21m³/min
Engine power	75kW	75kW
Dimensions	Length X Width X Height
On transportation	6170X2150X2480mm	6170X2150X2480mm
On working conditions	4360X2150X5380mm	4360X2150X5380mm
Gross weight	6.5T	6.8T

Integrated Hydraulic DTH Drilling Rig Parameters

Parameter	Type
Parameter	HJG-D120	HJG-D165
Aperture	90~150mm	152~180mm
Drilling Depth	28m	28m
Adaptive Rock	f⩽8
Rotation torque	3000Nm	4000Nm
Rotary speed	10~100rpm	10~100rpm
Thrust capacity	35kN	40kN
Feed stroke	4380mm	4380mm
Lifting Speed	0.8m/s	0.8m/s
Hammer Model	HD45/HD55	HD55/HD65
Drill rod diameter	89mm, 102mm	102mm, 114mm
Drill rod length	4m	4m
Travel speed	2.5Km/h 3Km/h	2.5Km/h 3Km/h
Grade ability	25°	25°
Rising height from ground	430mm	430mm
Wind pressure	1.7Mpa	2.4Mpa
Air consumption	⩾17m³/min	⩾25m³/min
Engine power	287kW	332kW
Dimensions	Length X Width X Height
On transportation	11000X2500X3280mm	11550X2716X3400mm
On working conditions	7800X2500X8410mm	7920X2716X8410mm
Gross weight	15.5T	23T
